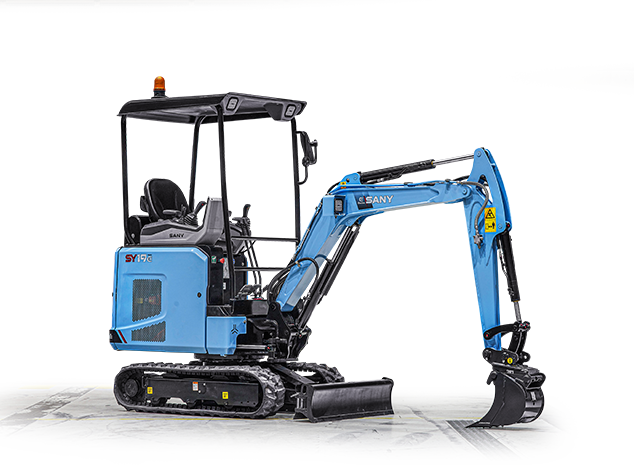

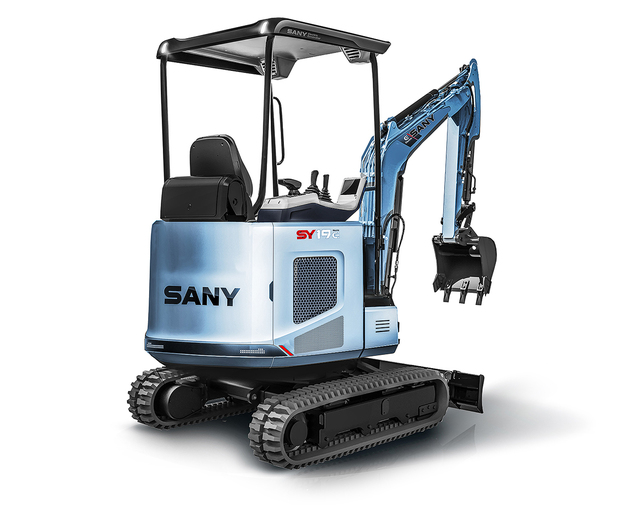

The SY19E is SANY’s first electric mini excavator! As well as zero emissions and considerably lower noise levels, the compact electric SY19E is equipped with a lithium iron phosphate (cobalt free) battery which allows for faster, safer and more efficient charging as well as a significantly longer battery life to reduce total cost of ownership. Featuring a single automotive standard charging socket, the machine offers a fully flexible charging solution that includes a fast charge option of 1.5 hours, without the need to purchase any additional equipment.
CHARGE ANYWHERE
Fully flexible automotive charging solution. No Extra Charge.
CHARGE FASTER
Fast charge option. No Extra Charge.
WORK LONGER
Long life battery up to 3,500 full charge cycles. No Extra Charge.
GOT YOU COVERED
Industry leading 5-year warranty. No Extra Charge.
Equipped with a state-of-the-art battery, efficient load-sensing hydraulic system and with multiple charging options the SY19E guarantees total flexibility on site.
+ Fully electric with zero emissions to allow for cleaner working and increases onsite flexibility to include indoor working, out of hours projects, urban and emissions sensitive areas
+ Fitted with a Lithium Iron Phosphate (cobalt free) battery, therefore less toxic and more environmentally friendly
+ Fully flexible, automotive standard charging socket provides 3 charging options as standard – DC fast charge (1.5 hours), 360v industrial (2.5 hours) 240v domestic (9 hours)
+ Fast charge at any automotive fast charge station i.e. petrol stations, hotel car parks.
+ Work for longer with up to 6 hours run time off a single charge (depending on application)
+ Long battery life (3,500 full charge cycles) reduces total cost of ownership and increases residual value
+ Light weight and compact dimensions for easy transportation and manoeuvrability on site
+ Expanding undercarriage (980 – 1350mm) for applications that require maximum versatility
+ Load sensing hydraulics to maximise on performance and fuel economy
+ 100% steel bodywork for maximum protection and reduced cost of ownership
+ Hammer and bi-directional pipework as standard for maximum versatility of attachments
SAFETY
The SY19E is equipped with a number of safety features, all included as standard.
+ ROPS/TOPS certified canopy for safe operation
+ Optimal visibility for increased on site safety
+ Battery disconnect switch and emergency stop button
+ Fitted with a nitrogen accumulator, in case of an Emergency (loss of power) all equipment can be lowered
+ Travel alarm and green beacon to increase visibility, attract attention and ensure safety
OPERATOR COMFORT
With the SY19E operators can look forward to maximum comfort and easy operation.
+ Reduced noise levels of 66(dBA) for the operator and 83(dBA) outside the machine to improve driver comfort and aid clearer communication on site
+ Simplified charging solution for the operator with one single charge point and less cabling/equipment to carry
+ Responsive and precise controls
+ Ergonomic and comfortable operator’s seat with adjustable armrests
+ Clear instrumentation and large high resolution 7″ colour display
+ Keyless push start/stop function with password protection
+ LED work lights positioned on the front and boom for maximum visibility in low light conditions
SERVICE
+ Easy access to all maintenance points
+ Fully electric drive with a reduced number of serviceable machine parts, reduces maintenance downtime and servicing costs by up to 80%
+ The maintenance free lithium iron phosphate battery equipped with BMS (battery management system) and thermal management ensures battery life and quality during operation and charging
SECURITY
+ Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category
+ EVI telematics with built in tracker for complete peace of mind
WARRANTY
+ 5-year/3000 hour warranty as standard (Terms and Conditions apply)
Specifications
DIMENSIONS
Transport length
3624 mm
Transport width
980/1350 mm
Transport height
2440 mm
Top width
980 mm
Blade height
270 mm
Standard track pad width
230 mm
Track gauge
750/1120 mm
Tail swing radius
900 mm
Track ground length
1225 mm
Track length
1585 mm
Counterweight ground clearance
470 mm
Bucket capacity
0.04m3
WORKING RANGE
Maximum digging height
3665 mm
Maximum dumping height
2635 mm
Maximum digging depth
2360 mm
Maximum vertical digging depth
2215 mm
Maximum digging reach
4000 mm
Minimum swing radius
1655 mm
Blade max height
310 mm
Blade max depth
320 mm
WEIGHT
Operating mass
1,965 kg
HYDRAULIC SYSTEM
Main pump
Variable displacement axial piston pumps with a load-sensing hydraulic system
Maximum oil flow
72 l/m
Main rotary drive
24.5 MPa
RELIEF VALVE SETTING
Boom circuit
245 bar
Slewing circuit
162 bar
Drive circuit
245 bar
Pilot control circuit
35 bar
PERFORMANCE
Power
15 Kw (Peak) / 10 Kw (Continuous)
Traveling speed (High-Low)
3.2/2.3 km/h
Swing speed
10 rpm
Gradeability
50.6°
Gross capacity
22 Kw/h
Max system flow
90 l/m
Bucket digging force
15.2 kN
Arm digging force
9.2 kN
Noise
66/83 dB
Charge time
DC 1.5hrs / Industrial (360v) 2.5hrs / Domestic (240v) 9hrs
