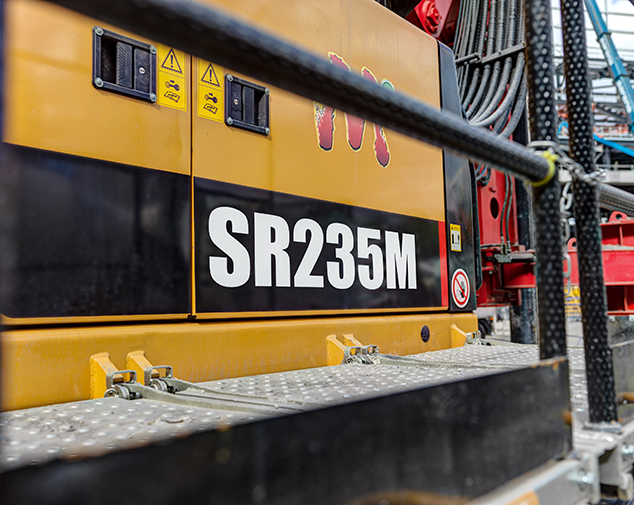

SR235M
Drilling Rig

INDUSTRY LEADING 5-YEAR WARRANTY

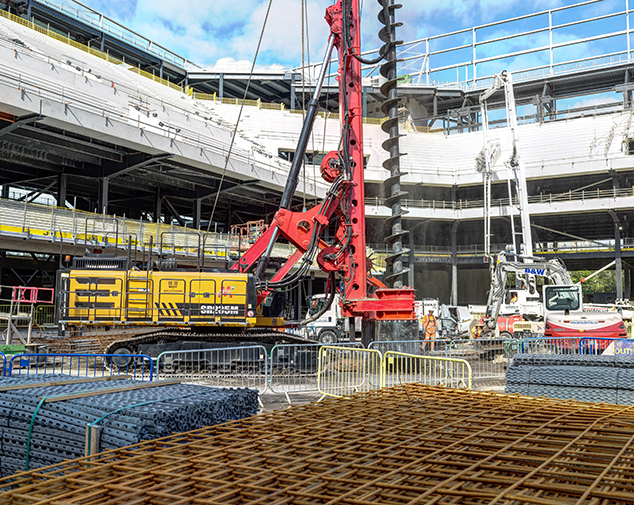

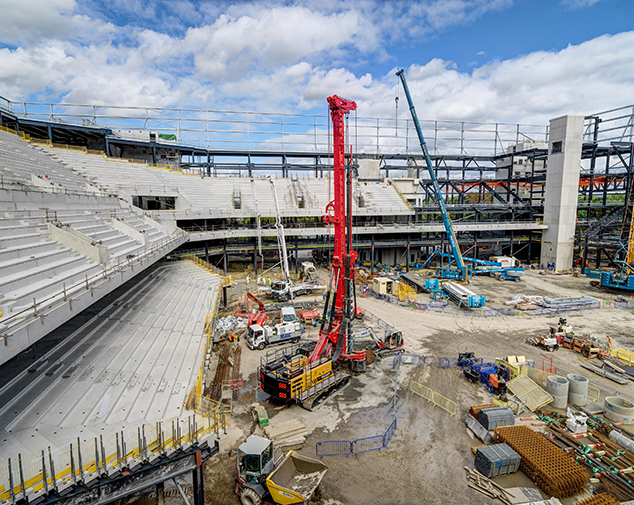

The SANY multi-purpose SR235M rig is suitable for a wide range of geotechnical piled foundation applications. The machine platform is powered by a powerful Volvo Stage V engine providing superior efficiency and demonstrating outstanding capabilities with smooth compound movement control, adjustable torque and rotation. The multi-purpose SR235M rig is our flagship entry rig into the UK piling market.



• Multi-purpose rig methods include: Rotary, LDP, CFA and a low headroom option
• High performance and reliability with lower fuel consumption
• New generation, ergonomic cab with greater space and improved visibility





  • MAX. PILE DIAMETER
    2,000 mm
  • MAX. PILE DEPTH
    73m / 58m
  • RATED TORQUE
    235 kNm
  • MAX, OPERATING HEIGHT
    24.1 m
  • CFA MAX. PILE DEPTH
    25.5 m
  • CFA MAX. PILE DIAMETER
    1.0 m
Benefits & Features

PERFORMANCE



Multi-purpose

+  Multi-purpose rig including 4 technologies: Rotary, LDP, CFA and a low headroom option

+  Universal connection port design allows for quick conversion between different modes



Power and efficiency

+  Powerful Stage V VOLVO TAD1181VE engine (265 Kw / 2000 rpm)

+  World class fuel efficiency combined with a reliable Exhaust Aftertreatment System (EATS) gives high uptime as well as low cost of ownership.

+  Next generation electrically controlled positive flow hydraulic system with pressure loss lowered by 12%

+  EP optimal control system distributes power in real time, which brings improved operating experience, quicker operation feedback and lower energy consumption

+  Main winch system adopts confluence technology to improve operation speed and efficiency

+  CFA can realise crowd drilling and improve adaptability under different operating conditions

+  Single layer wire rope on winch drum prolongs service life



Environmentally friendly

+  Stage V compliant engine for low exhaust emissions

+  Lower noise levels of 80db



Kelly Mode Rotary Drive

+  Multi-gear control with maximum spin speed of 30 rpm

+  Dual buffering system reduces vibration and avoids damage to device

+  Lengthened key sleeve design ensures alignment ability and drilling verticality

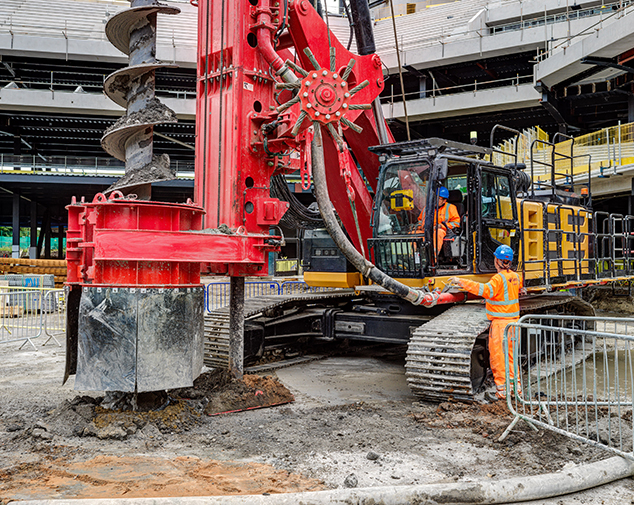

 CFA Rotary Drive

+  The design of CFA rotary drive enables rapid conversion.

+  Gear box anti – sediment design ensures safety and high efficiency



SAFETY

+ Integrated platform with handrails and rear ladders for easier cab access and safe maintenance work

+ LED work lights for greater visibility and safer working in low light conditions

+ Fitted with rear view safety camera for greater visibility

+ Reverse alarm to attract attention and prevent accidents

+ Oversized safety mirrors fitted to the cab upright hand-rail for greater on-site safety

+ Engine start/stop button for ease of operation and improved security

+ Visual representation of locking device accurately shows the process of locking/unlocking, reduces Kelly bar wear and avoids accidents



OPERATOR COMFORT

+ Next generation, spacious and modern operator’s cab

+ Premium air-suspension, ergonomic and anti-fatigue operators seat

+ Easy to use 10.4” HD touch screen display that supports multiple languages including English, French, Russian, Spanish, Portuguese, Turkish and Chinese

+ Excellent all-round visibility and LED work lights positioned on the front, rear and mast for safe working in low light conditions

+ Efficient climate control system for improved operator comfort

+ DAB radio with two fitted USB ports

+ Ergonomic joysticks for responsive and easy control

+ Lower noise levels of 80db for more comfortable working

+ Smooth crawler speed makes moving the rig around site more safely and at faster speed

+ Integrated CFA construction management system

+ Operating parameters and engine after-treatment system can be displayed on the main screen for easy monitoring



SERVICE

+ Worldwide VOLVO-service partners for engine repairs and maintenance

+ Easy access to all maintenance points

+ Equipped with central lubrication system for reduced servicing and less downtime

+ Integrated engine filters facilitate replacement saving time and money

SPECIFICATION
PILING RIG
PILE
Max. drilling diameter 2,000 mm 79 in
Max. drilling depth 73 / 58 m 240/191 ft
ROTARY DRIVE
Rated output torque 235 kN·m 173,327 lbf·in
Rotation speed 5~30rpm 5~30rpm
CROWD SYSTEM
Crowd force 210kN 47,210 lbf
Line pull 270kN 60,698 lbf
Stroke 15,000 mm 591 in
MAIN WINCH
Line pull 235kN 52,830 lbf
Wire rope diameter 32 mm 1.26 in
Max. line speed 70 m/min 230 ft/min
AUXILIARY WINCH
Line pull 80kN 17,985 lbf
Wire rope diameter 20 mm 0.79 in
Max. line speed 70 m/min 230 ft/min
MAST INCLINATION
Forward/backward 5°/ 90° 5°/ 90°
lateral ±3° ±3°
MAIN CHASSIS
Engine model TAD1181VE TAD1181VE
Engine power ISO 3046-1 265 kW/2,000rpm 355 HP / 2,000 rpm
Emission regulation EEC 97 / 68 EC EPA / CARB
Stage V Tier4 final
Sound pressure level in the cabin
(EN 16228,Annex B)
LPA 75 dB(A) LPA 75 dB(A)
Sound power level
(2000/14/ECu.EN16228,AnnexB)
LWA 115 dB(A) LWA 115 dB(A)
Fuel tank capacity 580 L 153 US gal
AD Blue tank capacity 45 L 12 US gal
Extension width 4,500 mm 177 in
Track shoe width 800 mm 32 in
Swing radius 4,600 mm 181 in
OVERALL MACHINE
Overall height 24,060 mm 947 in
Operating weight 86,000 kg 189,600 lb
Transport width 3,550 mm 140 in
Transport height 3,755 mm 148 in
Transport Length 17,410 mm 686 in
KELLY BAR
Interlock bar ∅445×3×15 10,300 Kg / 40 m 22,707lb /131ft
Interlock bar ∅445×4×15①  11,000 Kg / 54 m 24,912lb /177ft
Interlock bar ∅445×4×16 11,520 Kg / 58 m 25,397lb /190ft
Friction bar ∅445×5×14 10,300 Kg / 62 m 24,708lb /203ft
Friction bar ∅445×5×15 10,900 Kg / 68 m 24,030lb /223ft
Friction bar ∅445×5×16 11,500 Kg / 73 m 25,353lb /239ft

Remarks:①Standard



LOW HEADROOM MODE
Pile
Max. drilling diameter  2,000 mm 79in
Max. drilling depth 24 m 78.7 ft
Rotary drive
Rated output torque 235 kN·m 173,327 lbf*ft
Rotation speed 5~30 rpm 5~30 rpm
Crowd system
Crowd force 210 kN 47,210 lbf
Line pull 270 kN 60,698 lbf
Stroke 4,500 mm 177 in
Overall machine
Overall height① 13,205 mm 522 in
Overall height② 11,535mm 454 in
Operating weight③ 75,000 kg 165,347 lb
Remarks: ①The higher location of boom. ②The lower location of boom. ③With standard kelly bar.

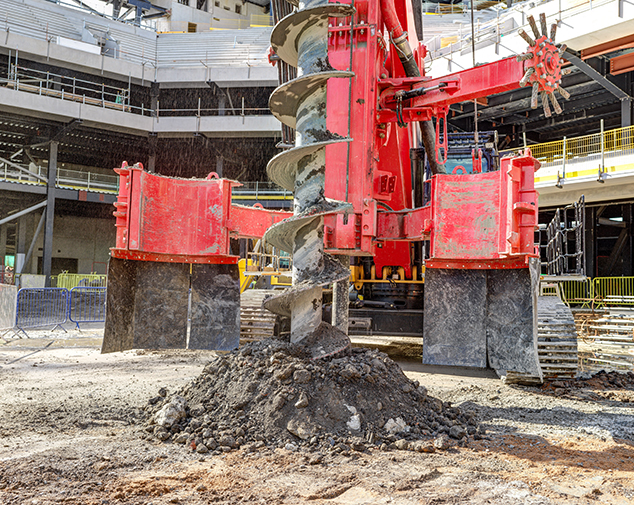

CFA MODE
Pile
Max. drilling diameter  1,000 mm 39.4 in
Max. drilling depth 25.5 m 83.7 ft
Rotary drive
Rated output torque 100~230 kN·m  73,756~169,639 lbf*ft
Rotation speed 5~30 rpm 5~30 rpm
Crowd system
Crowd force 210 kN 47,210 lbf
Line pull / /
Stroke 17,000 mm 669 in
Main winch
Line pull 800 kN 179,850 lbf
Wire rope diameter 32 mm 1.26 in
Max. line speed 17.5 m/min 57.4 ft/min
Overall machine
Overall height 31,500 mm 1,240in
Operating weight① 90t 198,416 lb
Remark: ①With pipe.
