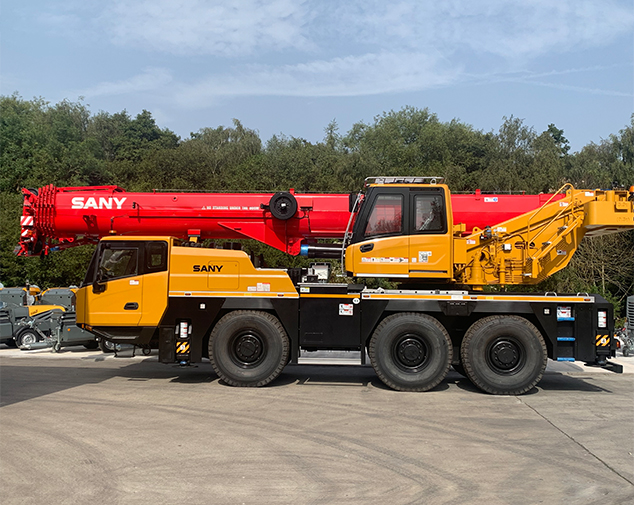

The new SANY SAC600E is a 3 axle All Terrain Crane with a capacity of 60-tonne and six section 50m boom that is operated by a single boom cylinder with pinning system.


– A wireless remote-control system is standard and allows all crane functions to be operated

– The cranes MTU power plant and Allison transmission ensures smooth and powerful on and off-road performance

– The all-axle steering system allows for precise onsite manoeuvrability


    280 kW / 1,600 rpm
    46,000 kg
    60T at 3 m


+ MTU Stage V Diesel Engine 280Kw / 380 HP

+ Allison automatic 6 speed transmission with 3 stage torque converter

+ Kesseler axles with hydro pneumatic suspension system

+ Wabco disc braking system with ABS

+ 6 x 4 x 6 drive/steer (6 x 6 x 6 optional)

+ Telma electro-magnetic retarder mounted to axle 3

+ Multi-mode steering functions for all round manoeuvrability



Safety features of the SAC600E guarantee maximum safety and minimal risk to operators and bystanders on site.


+ SANY developed LMI system complying to EN13000

+ Anti-2 block limit switch

+ Aircraft warning light – boom mounted

+ Anemometer with in cab display

+ Winch mounted camera with in cab display

+ Boom mounted working lamps to allow the load to be illuminated

+ Variable outrigger positioning system for optimal site positioning

+ Boom head camera system with zoom function and in cab display (optional)

+ Machine Link telematic system

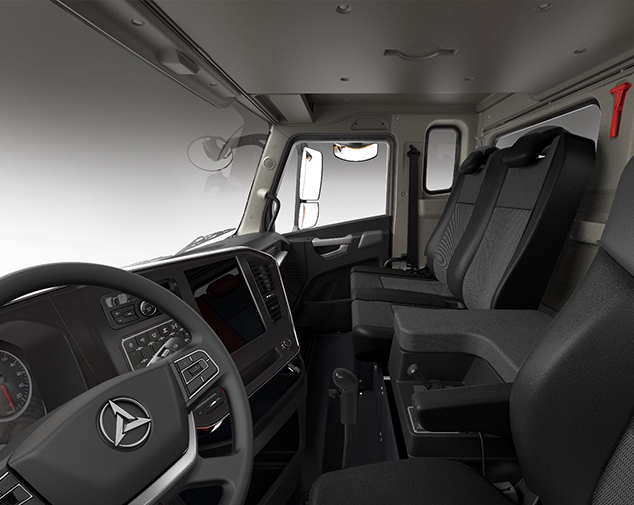

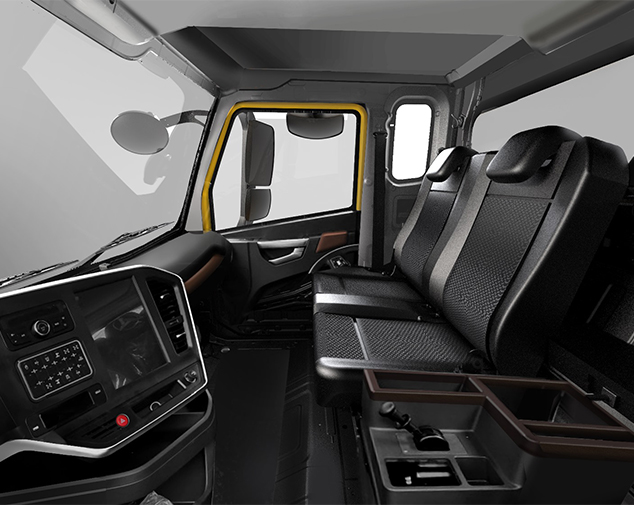

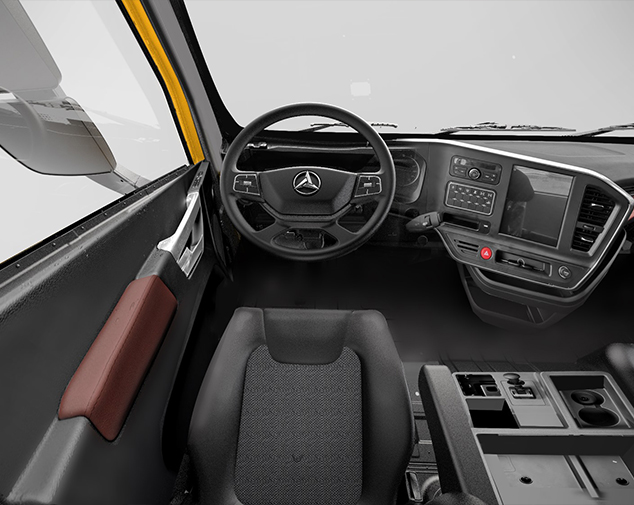

The SAC600E offers a premium class of operator and driver comfort as standard.


+ Spacious walk though drivers cabin with 2 additional seats and fold down bunk

+ 10.1” LED touch screen for operators controls

+ HAVC system for both driver and operator cabs

+ Operator cab with 20 degree tilt function for enhanced operator comfort

+ Multi-functional operator seat with height and lumber support

+ Wireless radio remote control system for all crane functions



+ Easy access to all maintenance points

+ Premium branded supplier components for long service life




+ Plus 24m/4000 hour warranty as standard for complete peace of mind (terms and conditions)

Capacity 60T @ 3m
Boom length 10.7 – 50m
Boom type 6 section pinned
Max tip height 50.5m
Max radius 40m
Fly jib 2 section 9.2 -16m
Fly jib offset 0,20,40 degrees
Fly jib max tip height 66.5m
Fly jib max tip radius 46m
Line pull (Max single) 47.7Kn
Cwt 13T
Max travel speed 80 k/ph
Gradeability 60%
Tyre size 16:00R25 – 445/95R25
Drive/steer 6 x 4 x 6  * 6 x 6 x 6
Model MTU OM 470LA
Rated power 280 KW /1600 kW/rpm
Emission Stage V
Rated torque 1900/1300 Nm/rpm
Displacement 10.7l
Cylinders 6 In-line
Fuel tank 450l
Ad-Blu tank 40l
Transport length 11.95m
Transport width  2.55m
Transport height  3.95m
Outriggers Max  6.40 x 7.45m
Weight STGO 46,000 kg  * 13t Cwt
