STH1840
EFFICIENCY ON THE HIGHEST LEVEL

3-YEAR WARRANTY

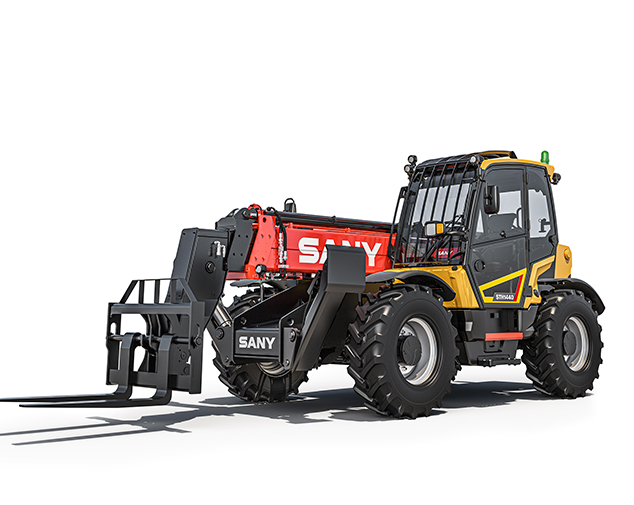

The STH1440 and STH1840 are the first machines to feature in the new telehandler series from SANY, designed to offer the ultimate in safety, comfort and performance. Thanks to their compact and innovative design, SANY telehandlers are the ideal solution for demanding jobs and precision work, whether that’s easy loading, moving or stacking and their versatility is increased further due to their ability to use a wide variety of attachments.



– Stage V Deutz engine for superb performance and greater fuel efficiency
– Ergonomic operators space offering a wealth of features as standard, boosting safe operation
– 3 year warranty for complete peace of mind

  • RATED POWER
    55 kW / 2,600 rpm
  • MAX. LIFT HEIGHT
    18 m
  • MAX. LIFT WEIGHT
    4,000 kg
Benefits & Features

PERFORMANCE

SANY telehandlers are designed and tested to ensure they provide the maximum in terms of reliability and operating hours.



+ Powerful 55 kW Deutz engine (without exhaust treatment) ensures optimum engine performance and low fuel consumption

+ Dana hydrostatic transmission for best application efficiency

+ Auxiliary venting for fast attachment changing

+ Three selectable steering modes (4WS, 2WS and Crab) for excellent manoeuvrability on site and faster travel speeds

+ Smooth, fast multi-functioning boom control with auto rpm



SAFETY

A comprehensive safety package is included as standard on all SANY telehandlers.



+ ROPS/FOPS fully certified cab for safe operation

+ Precise weight management system

+ Chassis levelling for safer lifting

+ Low boom profile for maximum visibility

+ Operator present seat switch and high-viz seatbelt

+ Integrated reversing camera, coupled with distance sensor

+ Reversing alarm and side and rear mirrors

+ LED work lights positioned on the cab and boom for low light working conditions



OPERATOR COMFORT

The operators cab of the telehandler series has been designed in Germany and is a highlight for any operator. It provides maximum comfort and pleasant working conditions due to numerous standard features.



+ Adjustable air-suspension seat

+ Inclinable and telescopic steering column for the perfect operating position

+ 10-inch touchscreen colour display with encoder control and intuitive user navigation

+ Quiet, low vibration engine (74 dB) so noise levels are kept to a minimum

+ Air-conditioning

+ Radio with Bluetooth and USB connector

+ Storage within the arm rest and cup and bottle holders



SERVICE

+ All maintenance and daily checks can be performed from ground level

+ Filters are centrally located for quick and easy access

+ Engine access is possible from three sides and the battery can be easily reached via an upwards-folding step under the cab

+ 500 hrs service intervals



SECURITY

+ Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category



WARRANTY

+ 3-year/3000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)





Specifications
ENGINE
Model Deutz TD 3.6L
Rated power 55 kW / 2,600 rpm
Max. torque 340 Nm/1,600 rpm
Battery 12 V

HYDRAULIC SYSTEM
Hydraulic pump type Gear with priority valve
System pressure 260 bar
Hydraulic flow 110 l/min

SERVICE REFILL CAPACITIES
Fuel tank 150 l
Hydraulic system 120 l

OPERATING WEIGHT 12,300 kg

PERFORMANCE PARAMETERS
Maximum lift capacity 4,000 kg
Lift capacity at maximum height 2,500 kg
Lift capacity at maximum reach 550 kg
Lift height 17,550 mm
Carriage crowd angle 37°
Carriage dump angle 12,5°
Frame levelling +/-
Outside turning radius (4WS) 3,850 mm
Auxiliary hydraulic flow 60 l/min
Auxiliary hydraulic pressure 28 MPa
Noise at driving position (55 kW) 75 Lpa
Noise to environment (55 kW) 83 Lwa

DIMENSIONS
Length to front of carriage 6,200 mm
Overall width 2,420 mm
Height over cab without beacon 2,595 mm
Height over cab with beacon 2,720 mm
Wheelbase 2,750 mm
Overall cabin width 950 mm
Ground clearance 370 mm
Overall width stabilisers fully deployed 3,400 mm
Turning radius over tyres 3,850 mm
Operating weight (with Forks) 12,300 kg
