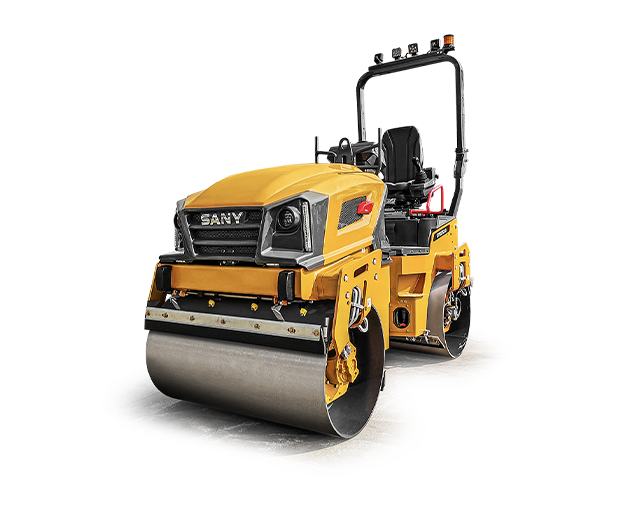

STR27C-10
HEAVY WEIGHT PERFORMANCE
INDUSTRY LEADING 5-YEAR WARRANTY

The SANY STR27C-10 is in a league of its own with its high specification as standard and peak power at low revs. Built for operator comfort it delivers best in class visibility to the drums with its narrow frame and fully sliding comfort seat it.



– Double travel levels (option on 24.6kW version)

– LED work and road lights

– Sliding seat

  • RATED POWER
    18.5 / 2,200 or 24.6 kW/2,400 rpm
  • OPERATING WEIGHT
    2,700 / 2,750 kg
  • DRUM WIDTH
    1,200 mm
Benefits & Features

PERFORMANCE

Where operator comfort and compaction performance are needed the STR27C-10 has it covered



+ High frequency compaction with stabilised amplitude

+ Stage V, Kubota engine

+ Max power at low revs for improved efficiency

+ Poclain and Danfoss hydraulic motors/pump for reliable performance



SAFETY

The STR27C-10 is fully equipped for safe working.



+ Foldable ROPS with multiple pre-cut mounting holes for accessories

+ Best in class visibility to the drums

+ Lockable battery isolator and emergency stop button

+ Reverse alarm, warning beacon and green seat belt beacon



OPERATOR COMFORT

Ease of use and flexibility make the STR27C-10 a comfortable place to work.



+ Dual operator levers (option on 24.6kW version)

+ Sliding comfort seat (with swivel function on 24.6kW version)

+ LED working and road lights for maximum productivity in low and/or poor light conditions

+ Clear back lit push button controls

+ Water filling from either side



SERVICE

+ Maintenance free, bolted centre joint

+ 500 hour service intervals



SECURITY

+ EVI telematics

+ PIN code enabled ignition



WARRANTY

+ 5 year / 3000 hour warranty as standard for complete peace of mind (terms and conditions)

Specifications
ENGINE
Model Kubota D1703 / D1803
Rated power 18.5 kW / 2,200 rpm or 24.6 kW / 2,400 rpm
Emission Stage V

LOAD
Average static linear load  1125 / 1145 kg/m

CAPACITIES
Water tank 180 l
Fuel tank 50 l

OPERATING WEIGHT 2,700 / 2,750 kg

PERFORMANCE PARAMETERS
Steering angle +20°
Swing angle +6°

COMPACTION
Vibration frequency  53/61 Hz / 55/67 Hz
Nominal amplitude 0.5 mm
Centrifugal force  26/35 kN / 28/42 kN
Travel speed 0-12 km/h
Gradeability (vibrate) 30%
Gradeability (not vibrate) 40%

DIMENSIONS
Length 2,475 mm
Width 1,307 mm
Wheelbase 1,700 mm
Height  2,613 mm
Drum diameter 700 mm
Drum Width 1,200 mm
Drum Thickness 13 mm
Ground clearance (minimum) 250 mm
