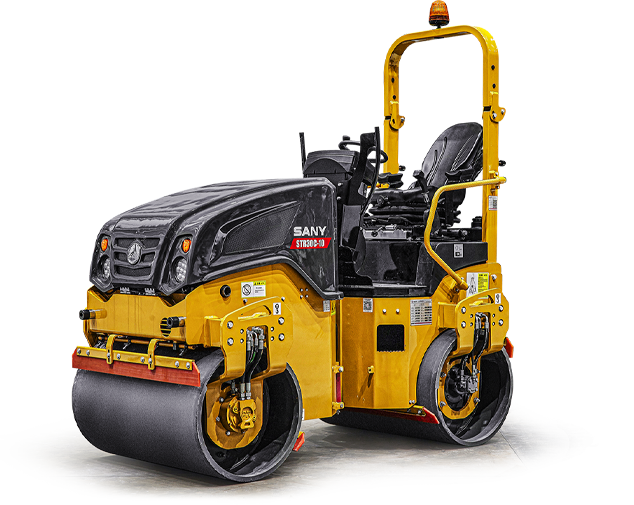

STR30C-10
HEAVY WEIGHT PERFORMANCE

INDUSTRY LEADING 5-YEAR WARRANTY

The SANY STR30C-10 is in a league of its own with the highest static linear load in its width class, 15% more than comparable machines. With anti-long idle control as standard and its built-in heavy weight performance, you can save as you roll, reducing fuel usage and emissions.



– Double travel levels

– LED work and road lights

– 500 hour service intervals

  • RATED POWER
    36.5 kW
  • OPERATING WEIGHT
    3,120 kg
  • DRUM WIDTH
    1,200 mm
Benefits & Features

PERFORMANCE

Where efficiency and compaction performance are needed the STR30C-10 has it covered.



+ Heavyweight performance from a middle-sized machine

+ Reduced transport weight when compared to rollers in the same performance class (Table 6/4)

+ Stage V, Kubota engine with anti-long idle control

+ Max power at low revs for improved efficiency

+ Poclain hydraulic motors for reliable performance



SAFETY

The STR30C-10 is fully equipped for safe working.



+ Foldable ROPS with multiple pre-cut mounting holes for accessories

+ Excellent visibility all around

+ Lockable battery isolator and emergency stop button

+ Reverse alarm, warning beacon and green seat belt beacon



OPERATOR COMFORT

Ease of use and flexibility make the STR30C-10 a comfortable place to work.



+ Dual operator levers

+ Sliding comfort seat

+ LED working and road lights for maximum productivity in low and/or poor light conditions

+ Clear 7-inch information display for simple and easy to use operation



SERVICE

+ Easy access to all service points

+ 500 hour service intervals



SECURITY

+ PIN code enabled ignition



WARRANTY

+ 5 year / 3000 hour warranty as standard for complete peace of mind (terms and conditions)

Specifications
ENGINE
Model Kubota D1803-CR-T-EW01
Rated power 36.5 kW
Emission EU Stage V / EPA Tier 4
Storage battery (V x Ah) 12 x 60

LOAD
Average static linear load  1,310 kg/m

CAPACITIES
Water tank 230 l
Fuel tank 60 l
Hydraulic oil tank 50 l

OPERATING WEIGHT 3,120 kg

PERFORMANCE PARAMETERS
Steering angle +32°
Swing angle +10°
Min. turning outside diameter 2,650 mm

COMPACTION
Vibration frequency  55/67 Hz
Nominal amplitude 0.5 mm
Exciting force  28/46 kN
Travel speed 0-12 km/h
Gradeability (vibrate) 30%
Gradeability (not vibrate) 40%

DIMENSIONS
Length 2,544 mm
Width 1,312 mm
Wheelbase 1,710 mm
Height  2,617 mm
Diameter of vibratory drum 700 mm
Width of vibratory drum 1,200 mm
Thickness of drum 14 mm
Ground clearance (minimum) 248 mm
