SW956E
POWERFUL ALL-ROUNDER
INDUSTRY LEADING 5-YEAR WARRANTY

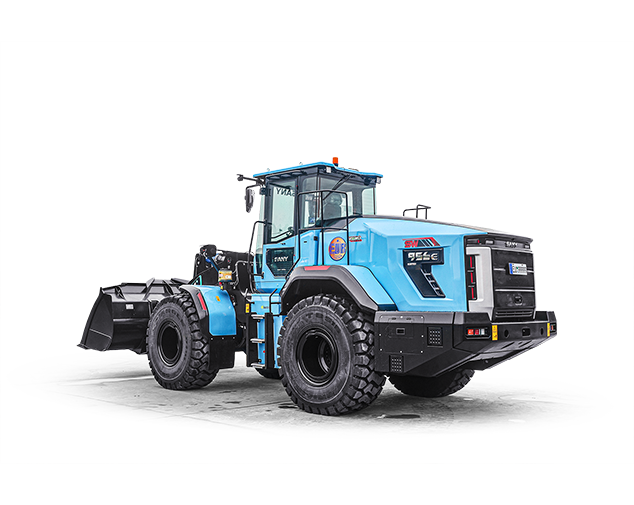

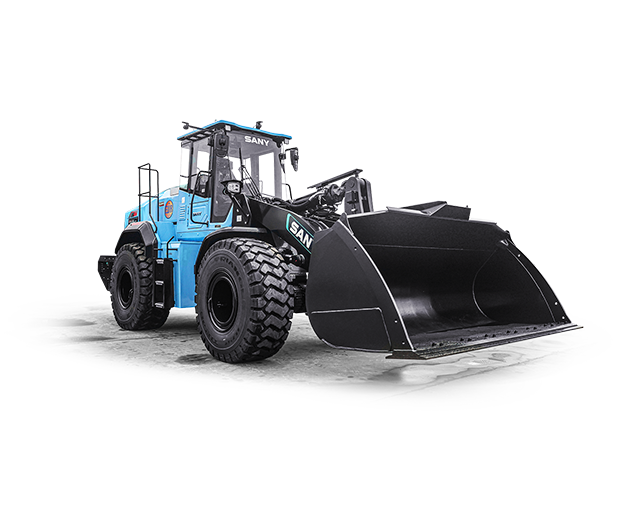

The new SANY SW956E is a powerful 20-ton electric wheel loader that combines high performance with low operating costs. With a battery capacity of 350 kWh, and the possibility of fast charging, this machine proves it’s efficiency throughout the working day in a multitude of tasks. Electric operation provides significantly lower fuel costs compared to diesel-powered loaders, while contributing to a better working environment.

The SW956E is designed to deliver maximum productivity in demanding environments. Regenerative braking recovers energy during braking, contributing to longer operating times and improved energy efficiency.



– Fast charging – from 20% to 80% in just 50 minutes

– Low noise level – 18 dB lower than a diesel loader, comparable to a passenger car

– Reduces vibrations – 30% less vibration thanks to electric drivetrain

– No toxic exhaust fumes – contributes to a better and safer working environment

– Regenerative braking – extends operating time by recovering energy during braking



  • BATTERY CAPACITY
    350 kWh
  • OPERATING WEIGHT
    20,000 kg
  • FULL TURN TIPPING LOAD
    13,200 kg
SPECIFICATION

MACHINE OUTPUTS

Breakout force 178 kN
Tipping load at full turn 13,200 kg
Tipping load straight 13,900 kg
Clearance (full 45° dump) 3,000 mm

WEIGHT
Operating weight 20,000 kg

WORKING MOTOR
Rated power 80kw
Peak power 160kw
Rated Torque 400 N.m
Peak Torque 800 N.m
