A COMPACT COMBINATION OF PERFORMANCE AND FUNCTIONALITY

INDUSTRY LEADING 5-YEAR WARRANTY

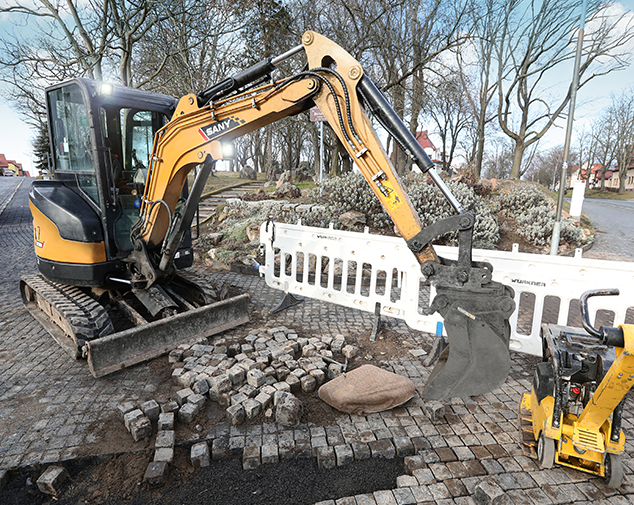

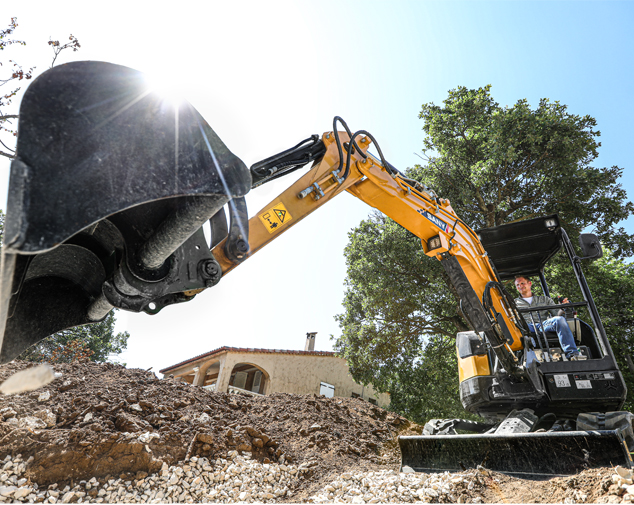

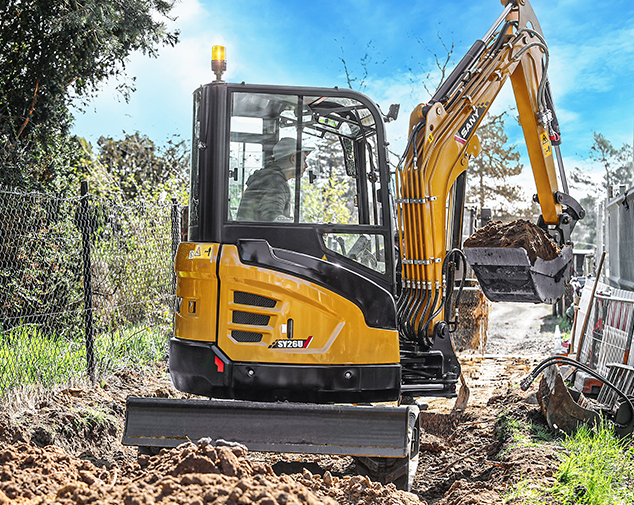

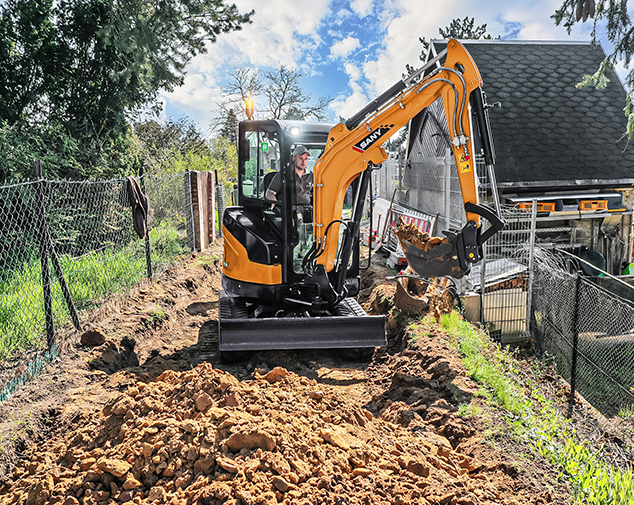

The mini machines from SANY have always been among the greatest when it comes to cost effectiveness and efficiency – it‘s no different for the SY26U mini excavator. It‘s in its element wherever it can demonstrate its speed and power, even in confined spaces. Its manoeuvrability and extremely precise control are also impressive in road construction, horticulture and landscaping.

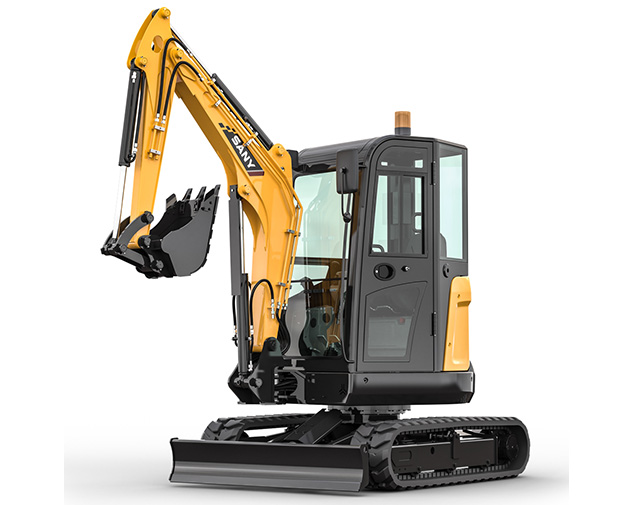

– Available with a cab or in canopy version
– Advanced load-sensing hydraulic system designed to improve performance
– 5 year warranty for complete peace of mind

  • RATED POWER
    14.6 kW / 2,400 rpm
  • OPERATING WEIGHT
    2,760 kg
  • DIG DEPTH
    2,820 mm
Find a Dealer Leave a message Download
Benefits & Features

PERFORMANCE

The SY26U is in its element whenever it can demonstrate its speed and power.



+ Light weight and compact dimensions for easy transportation and manoeuvrability on site

+ Stage V YANMAR engine and efficient, load sensing hydraulics to maximise on fuel economy

+ 100% steel bodywork for maximum protection and reduced cost of ownership

+ Hammer, bi-directional and rotate pipework with proportional controls enabling maximum versatility whatever the application



SAFETY

The SY26U is designed to ensure maximum safety for the operator and on the job site.



+ ROPS/FOPS certified cab for safe operation

+ Optimal visibility for increased on site safety

+ Battery disconnect switch

+ Travel alarm and rotating warning beacon to increase visibility, attract attention and ensure safety



OPERATOR COMFORT

With the SY26CU operators can look forward to maximum comfort and easier, fatigue-free operation.



+ Responsive and precise controls

+ Ergonomic and comfortable air suspension operator’s seat

+ Clear instrumentation and large high resolution colour display

+ Quiet, low vibration engine so noise levels are kept to a minimum

+ LED work lights for maximum visibility in low light conditions



SERVICE

+ Easy access to all maintenance points



SECURITY

+ Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category



WARRANTY

+ 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)



Specifications
DIMENSIONS
Overall length 4,285 mm
Overall width 1,550 mm
Overall superstructure width 1,375 mm
Overall height above cab 2,430 mm
Overall height of boom 1,620 mm
Rear length 775 mm
Track width 1,250 mm
Undercarriage length 2,005 mm
Undercarriage width (dozer blade) 1,550 mm
Horizontal distance (dozer blade) 2,940 mm
Blade height 300 mm
Track height 445 mm
Track link width 300 mm
Minimal ground clearance 290 mm
Clearance under counterweight 555 mm
Height of engine hood 1,460 mm
Tail swing radius 775 mm
Distance (centre) between crawler wheel and guide wheel 1,560 mm
Boom length 2,100 mm
Bucket arm length 1,300 mm
Bucket capacity 0.06 m³

WORKING RANGE
Max. horizontal reach on the ground 4,740 mm
Max. excavation depth 2,820 mm
Max. vertical reach 4,410 mm
Max. dumping height 3,100 mm
Min. dumping height 940 mm
Min. slewing radius 2,110 mm
Max. excavation depth, vertical wall 2,585 mm
Working machine height at min. slewing radius 3,200 mm
Arm head distance with work equipment retracted as far as possible 1,530 mm
Swing radius by min. boom swing
Swing radius by max. boom swing		 1,795 mm L
1,815 mm R
Max. clearance when blade up 360 mm
Max. depth of blade down 330 mm
Max. boom swing angle 540 mm L
765 mm R
Max. boom swing angle (deg.) 67° L
51° R

ENGINE
Model 3TNV80F
Rated power 14.6 kW
Max. torque 64.7 Nm/1,800 rpm
Displacement 1,267 l
Batteries 1 × 12 V/55 Ah

HYDRAULIC SYSTEM
Main pumps 1 Adjustable axial piston pump
Maximum oil flow 1 x 72 l/min
Travel drive 2 Adjustable axial piston pumps
Slewing gear 1 Adjustable axial motor

RELIEF VALVE SETTINGS
Boom circuit 245 Bar
Slewing circuit 196 Bar
Drive circuit 245 Bar
Pilot control circuit 35 Bar

PERFORMANCE
Slewing speed 10 rpm
Slewing torque 0.973 kNm
Max. ground speeds fast 4.5 km/h slow 2.4 km/h
Max. traction force 20 kN
Climbing ability 0.25
ISO bucket breakaway force 27.4 kN
SAE: PCSA bucket breakaway force 24.2 kN
ISO arm tear-out force 14.39 kN
SAE: PCSA arm tear-out force 13.83 kN

SERVICE REFILL CAPACITIES
Fuel tank 34 l
Engine coolant 4.1 l
Engine oil 3.4 l
Travel drive (per side) 0.6 l
Hydraulic system 45 l
Hydraulic oil tank 30 l




Quick Start Guide download
