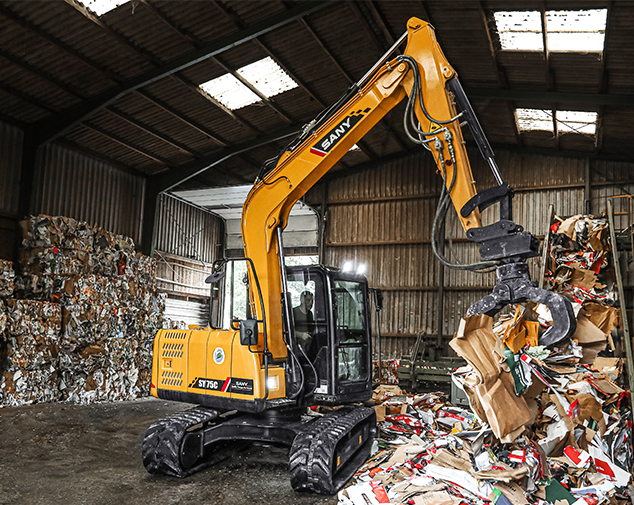

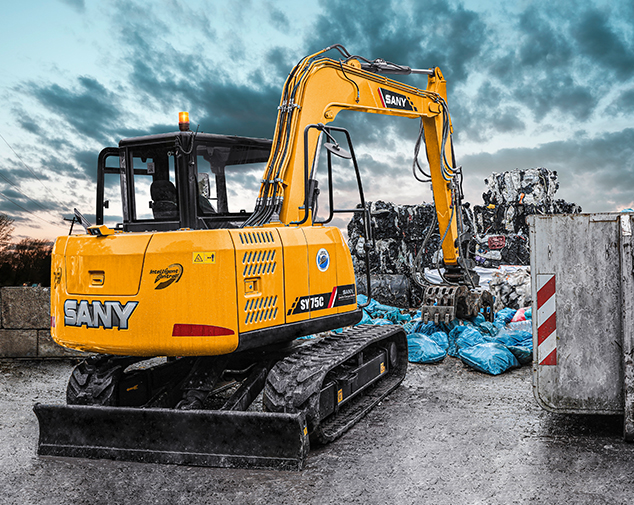

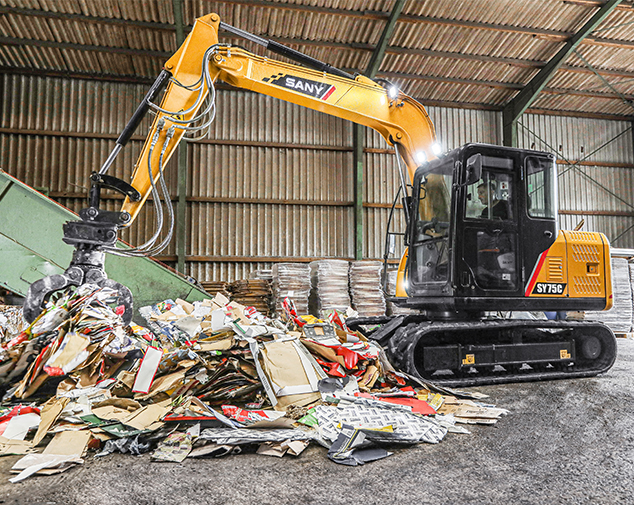

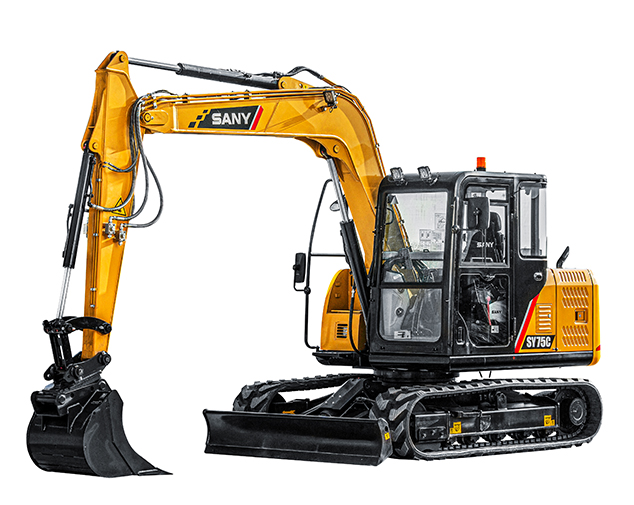

SY75C
COMFORT MEETS EFFICIENCY

INDUSTRY LEADING 5-YEAR WARRANTY

The new SANY SY75C – powerful and with a large excavation depth, this machine completes all tasks efficiently and with a reliable performance. The excavator's sophisticated structure allows it to tackle very high loads with exemplary stability. In addition, the cab's comfortable and ergonomic design is precisely tailored to the requirements for safe and concentrated work.

- Stage V YANMAR engine and efficient load sending hydraulic system
- Comfortable ROPS/FOPS certified operators cab
- 5 year warranty for complete peace of mind
  • RATED POWER
    42.4 kW / 1,900 rpm
  • OPERATING WEIGHT
    7,280 kg
  • DIG DEPTH
    4,400 mm
Benefits & Features

PERFORMANCE

The new SY75C is one of the most powerful SANY compact excavators and impresses with its robustness and power. With its powerful drive and compact dimensions, this excavator ensures high productivity during everyday work.



+ Compact design allows for easy manoeuvrability and increased versatility

+ Stage V YANMAR engine and efficient, load sensing hydraulics to maximise on fuel economy

+ 100% steel bodywork for maximum protection and reduced cost of ownership

+ The position of the boom enables the excavator to lift higher loads over longer reaches than comparable machines in this weight class



SAFETY

With its superb visibility, precision control and other safety design features the SY75C  makes all operators feel in total control.



+ ROPS/FOPS certified cab for safe operation

+ Rear view camera for optimal visibility

+ Battery disconnect switch

+ Travel alarm and rotating warning beacon to increase visibility, attract attention and ensure safety



OPERATOR COMFORT

Welcome to the comfort zone of the SY75C!



+ Responsive and precise controls

+ Ergonomic and comfortable operator’s seat

+ Clear instrumentation and large high resolution colour display

+ Quiet, low vibration engine so noise levels are kept to a minimum

+ Manual air conditioning for improved operator comfort

+ LED work lights for maximum visibility in low light conditions



SERVICE

+ Easy access to all maintenance points

+ Low maintenance requirements and longer service intervals



SECURITY

+ Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category



WARRANTY

+ 5-year/3000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)

Specifications
DIMENSIONS
Transport length 6,115 mm
Transport width 2,220 mm
Upperstructure carriage 2,040 mm
Height over cabin/ROPS 2,570 mm
Height of Boom – transport 2,760 mm
Overall length of crawler 2,820 mm
Tail length 1,800 mm
Track gauge 1,750 mm
Undercarriage width (blade) 2,200 mm
Horizontal distance to blade 1,735 mm
Blade height 450 mm
Track height 680 mm
Engine cover height 1,720 mm
Tail swing radius 1,800 mm
Center distance of tumblers 2,195 mm

WORKING RANGE
Max. digging reach 6,505 mm
Max. digging depth 4,450 mm
Max. digging height 7,390 mm
Max. dumping height 5,490 mm
Max. vertical digging depth 3,840 mm
Max. clearance when blade up 390 mm
Max. depth of blade down 330 mm

WEIGHT
Operating mass 7,280 kg

ENGINE
Model YANMAR 4TNV98C
Rated power 42.4 kW / 1,900 rpm
Max. torque 241 Nm / 1,300 rpm
Displacement 3,319 ccm

HYDRAULIC SYSTEM
Main pump Variable-piston-pump;
Maximum oil flow 1 x 135 l/min
Travel drive Variable displacement axial piston motor
Rotary gear Axial piston motor

RELIEF VALVE SETTING
Boom circuit 263 bar
Slewing circuit 216 bar
Drive circuit 260 bar
Pilot Control Circuit 35 bar

PERFORMANCE
Swing speed 11.5 rpm
Max. ground speed High 4.2 km/h, slow 2.3 km/h
Max. traction 56.8 kN
Climbing ability 35°
ISO bucket separation force 53 kN
ISO arm tear 35 kN

SERVICE REFILL CAPACITIES
Fuel tank 150 l
Engine coolant 12 l
Engine oil 10.8 l
Travel drive (each side) 1.2 l
Hydraulic tank 120 l
