Electric SY35E
COMPACT ELECTRIC POWERHOUSE - ALL YOU NEED FOR NO EXTRA CHARGE
INDUSTRY LEADING 5-YEAR WARRANTY

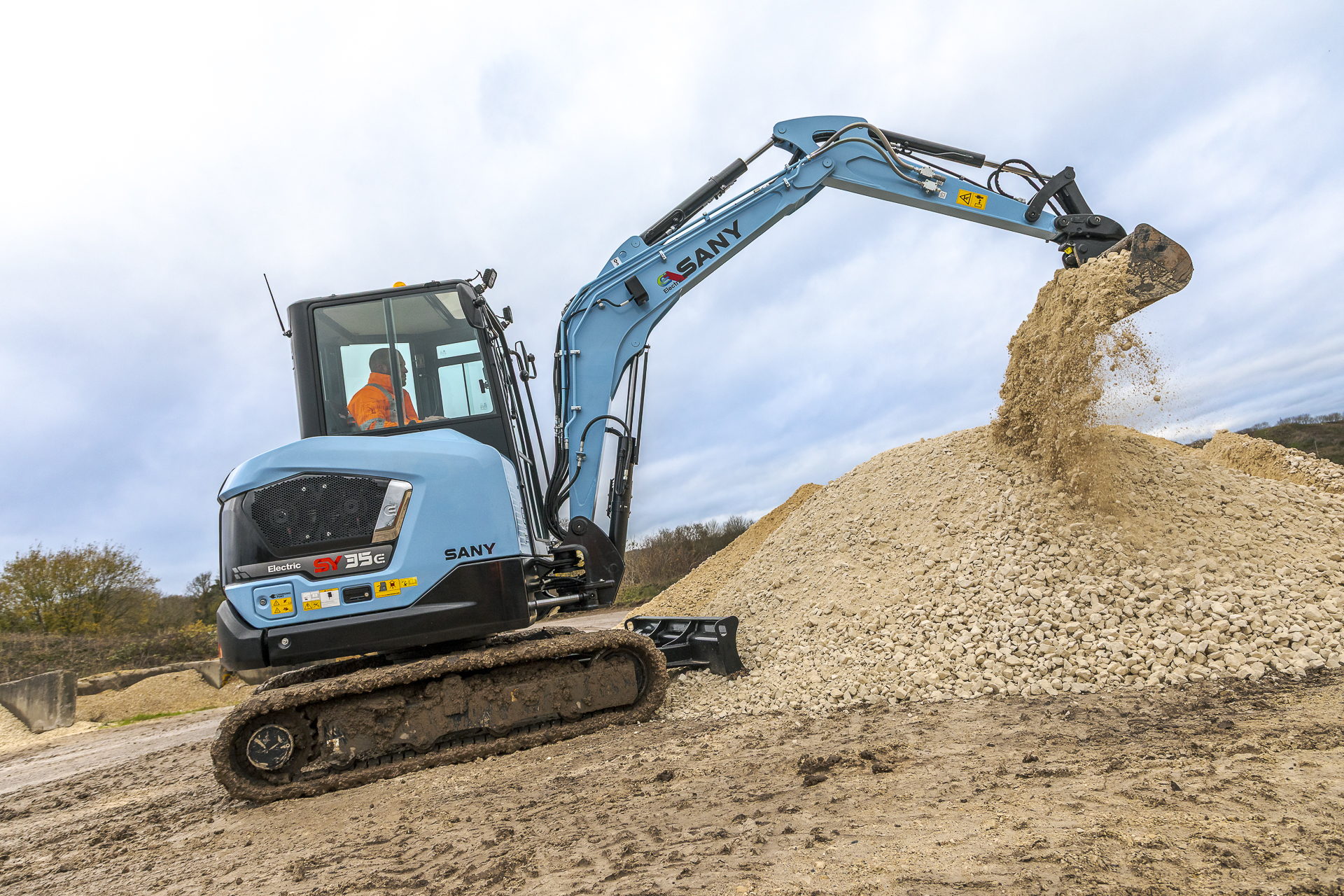

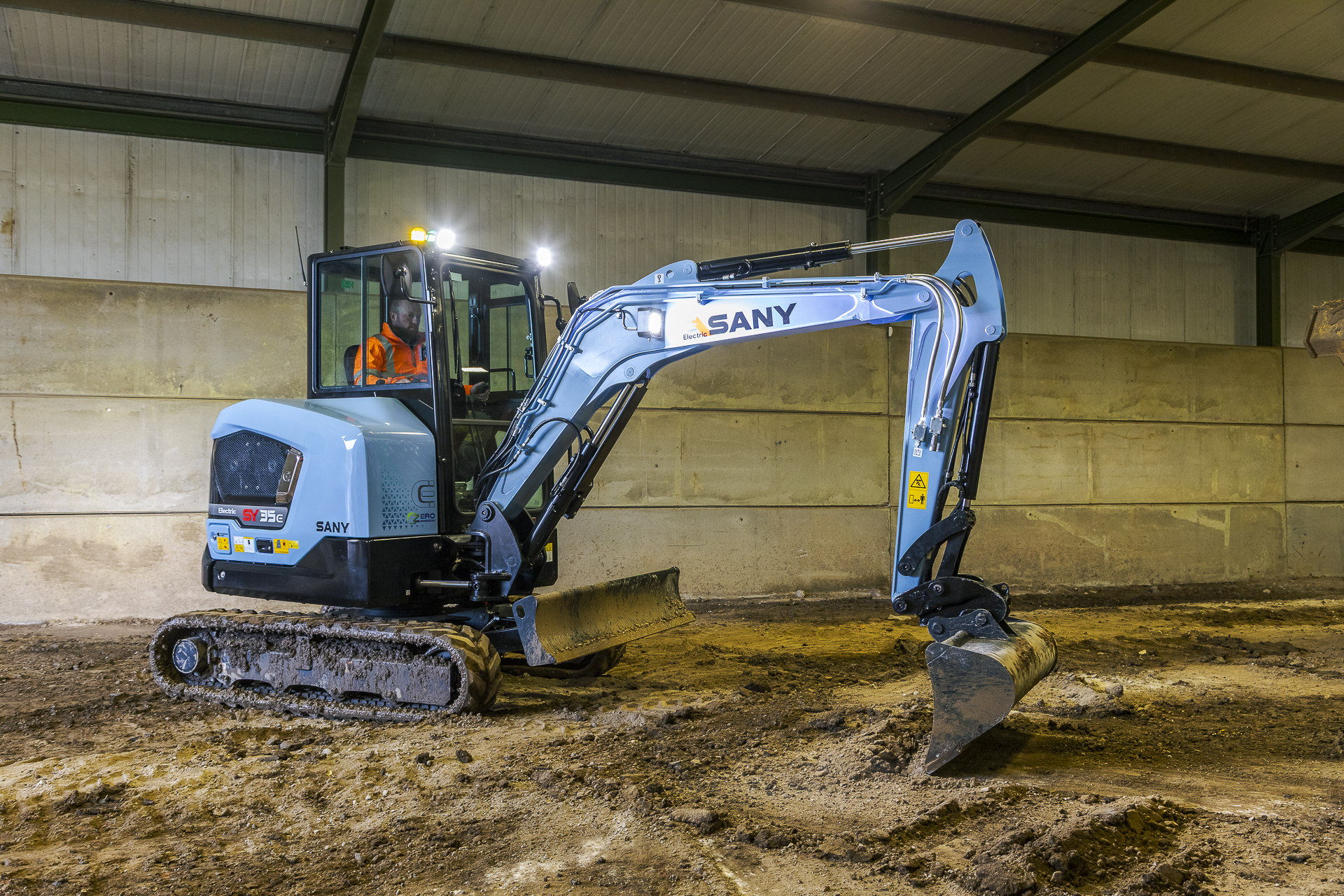

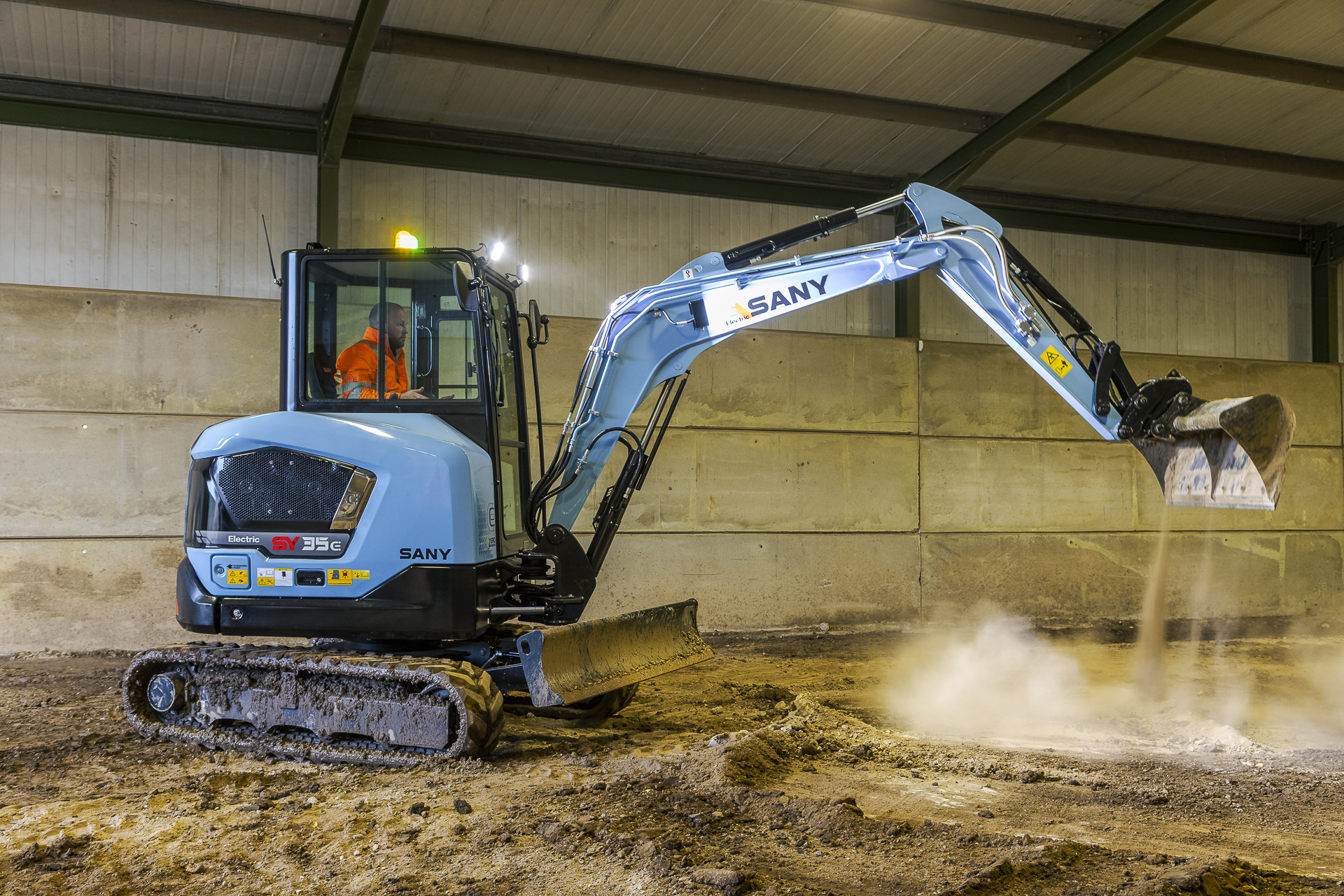

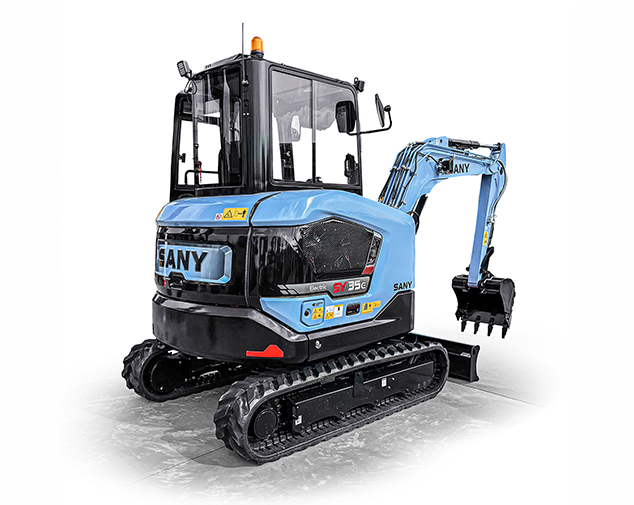

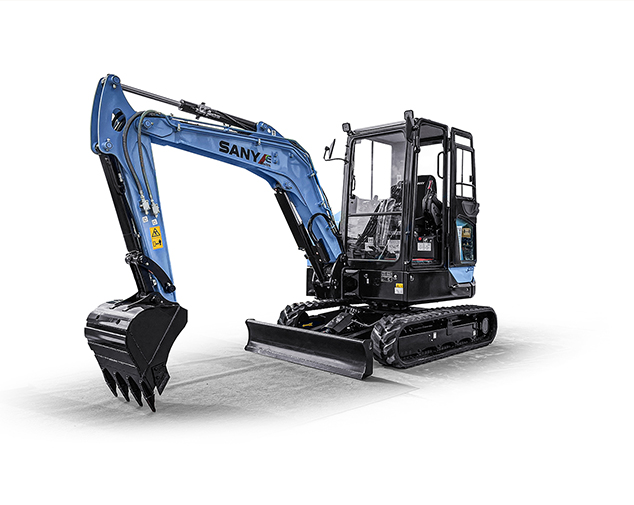

Introducing the SY35E, SANY’s first 4t electric mini excavator, delivering all the power you expect from a compact machine, with zero emissions and significantly reduced noise levels. With a cobalt-free lithium ion phosphate battery and an automotive-standard charging socket, the SY35E offers fast, flexible charging and long term durability.



CHARGE ANYWHERE

Fully flexible automotive standard charging socket – no Extra Charge.



CHARGE FASTER
Fast charge capability – no Extra Charge.



WORK LONGER
Long life battery offering high cycle life and strong residual value – no Extra Charge.



GOT YOU COVERED
Industry leading 5-year warranty as standard – no Extra Charge.



  • RATED POWER
    18 kW / 2,200 rpm
  • OPERATING WEIGHT
    4,300 kg
  • DIG DEPTH
    2,640 mm
Benefits & Features

PERFORMANCE

+ Fully electric with zero emissions, enabling indoor and out-of-hours work, and ideal for urban or emissions-sensitive job sites.

+ Cobalt-free lithium iron phosphate battery – safer, more environmentally friendly.

+ Automotive standard charging socket with multiple charging options – DC fast charge, industrial AC, domestic AC.

+ Work for longer with up to 6 hours run time off a single charge (depending on application and temperature conditions)

+ Long battery life (up to 5000 full charge cycles) reduces total cost of ownership and increases residual value

+ Compact dimensions and transport-friendly weight for easy movement between sites.

+ Load-sensing hydraulic system for high performance and efficiency.

+ Hammer and bi-directional pipework as standard for maximum attachments versatility.



SAFETY

The SY35E is equipped with a number of safety features, all included as standard.



+ ROPS/FOPS certified for safe operation.

+ Excellent visibility for increased site safety.

+ Battery disconnect switch and emergency stop button.

+ Travel alarm and green beacon as standard for enhanced visibility and safety.



OPERATOR COMFORT

With the SY35E operators can look forward to maximum comfort and easy operation.



+ Very low noise levels for operator comfort and onsite communication clarity.

+ Simplified charging solution with single charge port and minimal cables or adaptors.

+ Responsive and precise controls with ergonomic operator seat and adjustable armrests.

+ Large high-resolution display, keyless push start/stop and password protection.

+ LED work lights positioned on boom and front for maximum visibility in low light.



SERVICE

+ Easy access to all maintenance points.

+ Fully electric drive with fewer moving parts and significantly reduced service requirements – servicing costs lowered by up to 80%.

+ Maintenance-free lithium ion phosphate battery with BMS and thermal management ensures battery performance and longevity.



SECURITY

+ Registered to CESAR Datatag Scheme (for equipment theft protection) and CESAR ECV for emissions category verification.

+ EVI telematics with built-in tracker for machine monitoring and added peace of mind.



WARRANTY

+ 5-year / 5,000 hour warranty as standard (terms & conditions apply).

Specifications



BATTERY
Battery type Lithium iron phosphate battery (cobalt free)
Rated voltage 405.72 v
Rated battery capacity 173 Ah
Run time 6 – 8 hrs
Charge time DC 1.5hrs / Industrial (360v) 2.5hrs / Domestic (240v) 9hrs

DIMENSIONS
Transport length 4,920 mm
Transport width 1,720 mm
Transport height 2,615 mm
Top width 1000 mm
Blade height 375 mm
Standard track pad width 300 mm
Track gauge 1,420 mm
Tail swing radius 1,100 mm
Track ground length 1,670 mm
Track length 2,155 mm
Counterweight ground clearance 295 mm
Bucket capacity 0.12m3

WORKING RANGE
Maximum digging height 4,865 mm
Maximum dumping height 3,445 mm
Maximum digging depth 2,640 mm
Maximum vertical digging depth 3,115 mm
Maximum digging reach 5,480 mm
Minimum swing radius 2,475 mm
Blade max height 375 mm
Blade max depth 370 mm

WEIGHT
Operating weight 4,300 kg

HYDRAULIC SYSTEM
Main pump Variable displacement axial piston pumps with a load-sensing hydraulic system
Maximum oil flow 88 l/m
Main rotary drive 28 MPa


PERFORMANCE
Power 18 Kw (Peak) / 10 Kw (Continuous)
Traveling speed (High-Low) 4.2/2.4 km/h
Swing speed 10 rpm
Gradeability 58% /30°
Max system flow 88 l/m
Bucket digging force 26.51 kN
Arm digging force 19.96kN
Noise 68/91 dB
