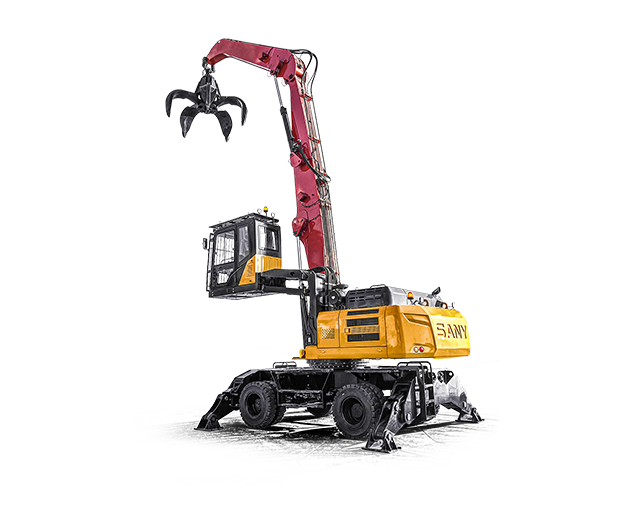

BUILT FOR HEAVY-DUTY MATERIAL HANDLING
The SMHW30G5 combines robust engineering with intelligent design to ensure reliable, precise material handling across a wide range of applications. Its optimised hydraulic system, excellent lifting capacity, and smooth travel performance make it an ideal solution for intensive duty cycles.
Operators benefit from excellent visibility, ergonomic controls, and a hydraulically elevating cab that enhances safety and productivity on site.
TYPICAL APPLICATIONS
+ Scrap metal handling
+ Recycling facilities
+ Timber yards
+ Port and dockside operations
+ Waste management sites
+ Industrial material transfer
COMFORT & VISIBILITY
The elevating cab provides an excellent overview of the working area, while intuitive controls and ergonomic seating reduce fatigue during long shifts. This ensures consistent productivity and safer operation throughout the working day.
TECHNICAL SPECIFICATIONS
+ Operating weight: 28,500 – 30,500 kg
+ Maximum travel speed: 20 km/h
+ Climbing ability: 35%
ENGINE
+ Manufacturer: Cummins
+ Model: 6.7
+ Power output: 145 kW @ 2,000 rpm
+ Maximum torque: 902 Nm
+ Emissions standard: EU Stage V
+ Fuel tank capacity: 465 litres
+ AdBlue capacity: 50 litres
HYDRAULIC SYSTEM
+ Maximum pressure: 320 bar
+ Oil flow: 2 × 260 l/min
+ Hydraulic oil capacity: 230 litres
DRIVE & AXLES
+ Transmission: Hydrostatic drive
+ Speed ranges: 0–5 km/h / 0–20 km/h
+ Axles: Kessler
+ Transmission model: Dana 360
+ Tyres: 10.00‑20 solid rubber
LOADING EQUIPMENT OPTIONS
+ 12 m configuration – Boom: 7.3 m & Stick: 5.1 m
+ 14 m configuration – Boom: 8.6 m & Stick: 5.6 m
CAB
+ Cab lifting height: 2,600 mm
+ Maximum eye level: 5,600 mm
REQUEST MORE INFORMATION
Looking for a high‑performance material handler tailored to your operation?
Contact us today to discuss pricing, availability, finance options, or to arrange a demonstration of the SANY SMHW30G5 Material Handler.
