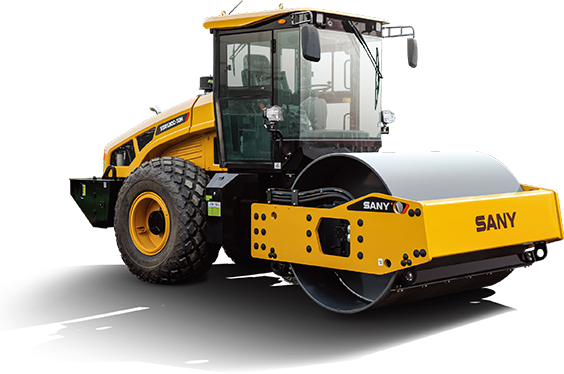

SSR130C-10H

HEAVY WEIGHT PERFORMANCE

INDUSTRY LEADING 5-YEAR WARRANTY

The SANY SSR130C-10H was designed as a true 13t roller with operator comfort in mind. With ECOstop and ECOmode as standard you can reduce fuel usage and emissions. Save as you roll with SANY!

– Smooth electronic travel levels

– LED work lights

– 500 hour service intervals

RATED POWER

115 kW / 2,100 rpm
OPERATING WEIGHT

13,260 kg
DRUM WIDTH

2,130 mm

Find a Dealer Leave a message Download

Benefits & Features

PERFORMANCE

Where efficiency and compaction performance are needed the SSR130C-10H delivers with no compromise.

+ Heavyweight compaction performance

+ Stage V, DEUTZ TCD4.1 engine with anti-long idle controls

+ Anti slip control that aids 50-55% gradeability

+ Danfoss hydraulic system and DANA axle for known performance

SAFETY

The SSR130C-10H is fully equipped for safe working.

+ ROPS/FOPS certified cab

+ Excellent visibility all around

+ Reversing camera as standard

+ Lockable battery isolator and emergency stop button

+ Reverse alarm, warning beacon and green seat belt beacon

OPERATOR COMFORT

Ease of use and flexibility make the SSR130C-10H a comfortable place to work.

+ Smooth electronic travel lever

+ Air suspension, multi adjust comfort seat

+ Clear 7-inch information display for simple and easy to use operation

+ Climate control

SERVICE

+ Maintenance free, bolted centre joint

+ 500 hour service intervals

SECURITY

+ EVI telematics

+ PIN code enabled ignition

WARRANTY

+ 5 year / 5000 hour warranty as standard for complete peace of mind (terms and conditions)

Specifications

ENGINE
Model	Deutz TCD 4.1 L4
Rated power	115 kW / 2,100 rpm
Emission	Stage V

LOAD
Average static linear load	3,357 kg/m

CAPACITIES
Fuel tank	220 l
Hydraulic oil tank	80 l

OPERATING WEIGHT	13,260 kg

PERFORMANCE PARAMETERS
Steering angle	+35°
Swing angle	+12°

COMPACTION
Vibration frequency	30/35 Hz
Amplitude	0.9/1.8 mm
Centrifugal force	180/280 kN
Travel speed	5-11.3 km/h
Gradeability (vibrate)	50%
Gradeability (not vibrate)	55%

DIMENSIONS
Length	5,775 mm
Width	2,285 mm
Wheelbase	2,950 mm
Height	3,080 mm
Drum diameter	1,500 mm
Drum width	2,130 mm
Drum thickness	25 mm
Ground clearance (minimum)	450 mm
