STH625
STH625
STH625
STH625
STH625
MOVE IT, LIFT IT, LOVE IT
3-YEAR WARRANTY

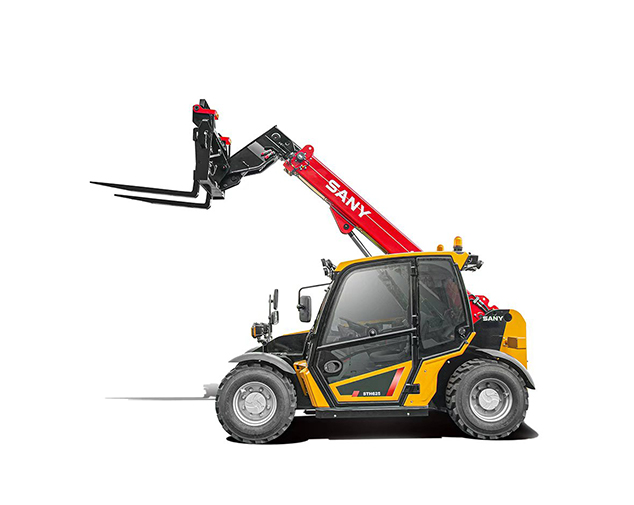

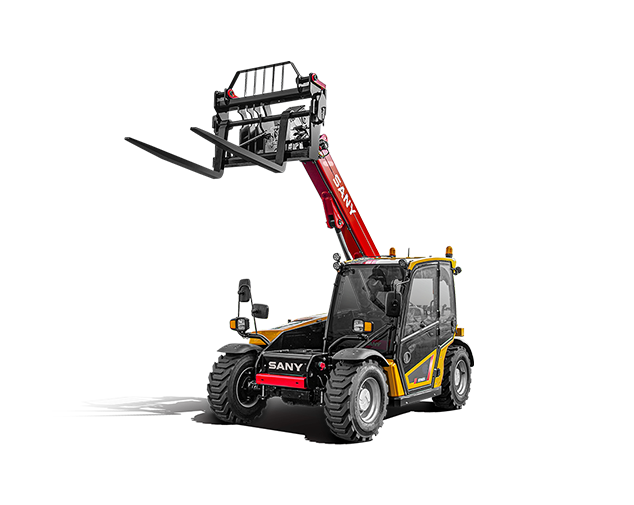

The SANY STH625 delivers exceptional lifting capability inside an ultra‑compact footprint — perfect for smaller construction sites, and low‑access environments. Designed with the full-size premium SANY cabin you’ll find on larger models, the STH625 maximises operator comfort without compromising mobility. With a robust Stage V Deutz engine, hydrostatic transmission, and advanced safety systems, this compact telehandler punches far above its weight class.



– Stage V Deutz engine for superb performance and greater fuel efficiency
– Ergonomic operators space offering a wealth of features as standard, boosting safe operation
– 3 year warranty for complete peace of mind

  • RATED POWER
    55.4 kW
  • MAX. LIFT HEIGHT
    6 m
  • MAX. LIFT CAPACITY
    2,500 kg
Find a Dealer Leave a message Download
Benefits & Features

PERFORMANCE

The STH625 offers the ideal balance of power and compactness, making it highly productive on restricted sites where larger machines can’t operate. A hydrostatic Dana transmission delivers smooth control and responsive acceleration, while the hydraulic system provides 80 L/min flow for fast boom movements and reliable attachment operation


+ Fast and smooth multifunction boom control

+ Low-profile boom design enhances visibility

+ Three steering modes: 4WS, 2WS, and Crab for ultimate manoeuvrability



SAFETY

SANY integrates a full safety suite across all its telehandlers, and the STH625 is no exception. The machine is ROPS/FOPS certified and includes intelligent load monitoring and operator‑presence systems, mirroring what you’ll find on the STH742 and other models.



+ ROPS / FOPS certified cabin (ISO 3471 / 3449)



+ Load weight monitoring & Load Moment Indicator



+ Integrated reversing camera + distance sensor



+ Hi‑viz seatbelt & seat‑present switch



+ Reversing alarm



+ LED work lights on boom and cab



+ Optional roof & screen guards





OPERATOR COMFORT

Just like the larger SANY models (including STH742), the STH625 cabin is designed for maximum comfort, long working hours, and intuitive machine control.





+ Premium adjustable suspended seat



+ 10-inch touchscreen display with encoder navigation



+ Fully adjustable steering column



+ Bluetooth radio, USB charging, cup/bottle holders



+ Heated rear screen, wipers on all sides



+ Air conditioning for optimal comfort





SERVICE

+ All maintenance and daily checks can be performed from ground level



+ Easy access to filters and hydraulic components



+ DEUTZ engine known for long service life and strong support network



+ 3-year / 3000-hour warranty for peace of mind



Specifications
PERFORMANCE PARAMETERS
Maximum lift capacity 2,500 kg
Lift capacity at maximum height 2,000 kg
Lift capacity at maximum reach 800 kg
Lift height 6000 mm
Carriage crowd angle 12°
Carriage dump angle 117°
Outside turning radius (4WS) 3,350 mm
Auxiliary hydraulic flow 80 l/min
Auxiliary hydraulic pressure 270 MPa
Noise at driving position (55 kW) 76 Lpa
Noise to environment (55 kW) 104 Lwa

DIMENSIONS
Length to front of carriage 4,000 mm
Overall width 1,850 mm
Height over cab without beacon 1,920 mm
Height over cab with beacon 2,010 mm
Wheelbase 2,390 mm
Overall cabin width 960 mm
Ground clearance 255 mm
Turning radius over tyres 3,350 mm
