SY155U
PRODUCTIVITY DELIVERED TODAY

INDUSTRY LEADING 5-YEAR WARRANTY

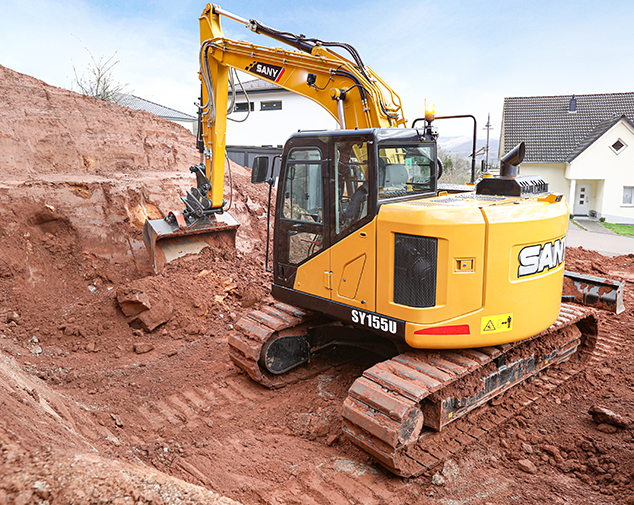

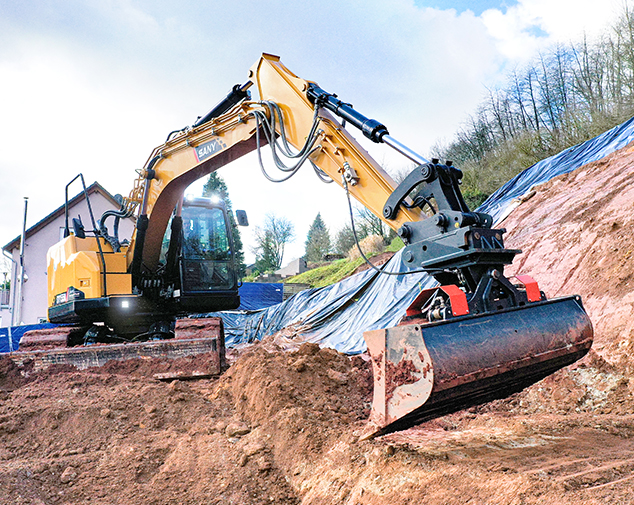

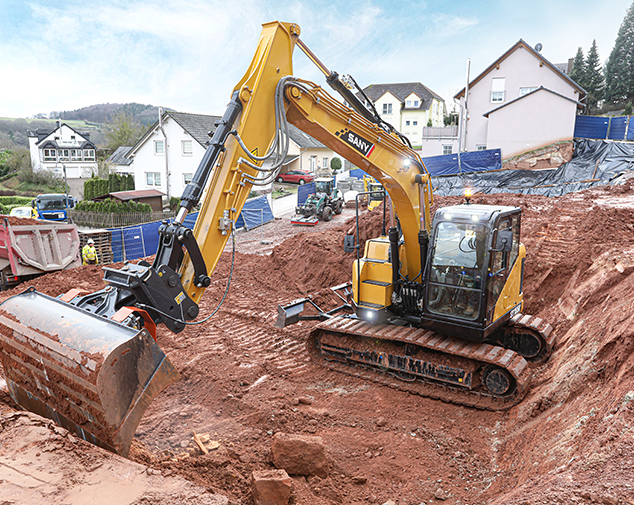

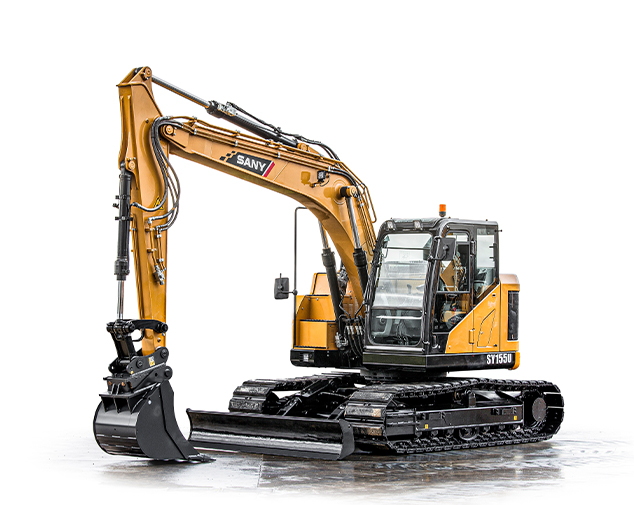

Thanks to its compact dimensions, the SANY SY155U short-tail-swing excavator is ideal for use in tight spaces such as inner-city construction sites. This machine is extremely economical to operate thanks to its very high productivity, exceptional driver comfort and low fuel consumption.

- Compact, short-tail-swing excavator with Stage V ISUZU engine
- Outstanding performance with low energy consumption
- 5 year warranty for complete peace of mind
  • RATED POWER
    78.5 kW / 2000 rpm
  • OPERATING WEIGHT
    16,170 kg
  • DIG DEPTH
    5,470 mm
Benefits & Features

PERFORMANCE

The efficiency of the SY155U means outstanding performance with low energy consumption.



+ Powerful short-tail-swing machine with short overhang radius enables working in tight spaces without any reduction in performance

+ Stage V ISUZU engine and efficient, load sensing hydraulics to maximise on fuel economy

+ Hammer, bi-directional and rotate pipework with proportional controls enabling maximum versatility whatever the application

+ 100% steel bodywork for maximum protection and reduced cost of ownership



SAFETY

Safety features of the SY155U ensure maximum safety to those in and around the machine.



+ ROPS/FOPS certified cab for safe operation

+ Rear view camera provides optimal visibility for increased on site safety

+ Battery disconnect switch

+ Travel alarm and rotating warning beacon to increase visibility, attract attention and ensure safety

+ Dozer blade provides maximum stability and lift performance



OPERATOR COMFORT

Welcome to the comfort zone of the SY155U!



+ Heated, air suspension operator’s seat

+ Clear instrumentation and large high resolution colour display

+ Quiet, low vibration engine so noise levels are kept to a minimum

+ Adjustable ventilation, heating and automatic climate control system

+ Integrated cooling box and large amount of storage space

+ LED work lights for maximum visibility in low light conditions



SERVICE

+ Easy access to all maintenance points

+ Low maintenance requirements and longer service intervals

+ Ergonomic handrails allow safe access to the maintenance platform



SECURITY

+ Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category



WARRANTY

+ 5-year/5000 hour warranty as standard for complete peace of mind (Terms and conditions apply)







“I believe I came home with the best excavators out there. I wouldn’t swap these new SANYs for anything else” –

Daniel Connolly – ReCon Waste

Specifications
DIMENSIONS
Overall length 8,178 mm
Overall width 2,590 mm
Overall width of superstructure 2,490 mm
Overall boom height 2,830 mm
Rear length 1,500 mm
Track width 1,990 mm
Landing gear length 3,665 mm
Landing gear width (dozer blade) 2,590 mm
Blade height 480 mm
Track link width 600 mm
Min. ground clearance 425 mm
Tail swing radius 1,500 mm
Distance between track wheel and guide wheel (center) 2,930 mm
Boom length 4,600 mm
Arm length 3,000 mm
Bucket capacity 0.6 m3

WEIGHT
Operating mass 16,170 kg

WORKING RANGE
Max. ground level range 8,338 mm
Max. excavation depth 5,469 mm
Max. vertical range 9,218 mm
Max. dumping height 6,756 mm
Minute. radius of gyration 2,086 mm
Max. excavation depth, vertical wall 3,796 mm

ENGINE
Model Isuzu AR-4JJ1XASC
rated power 78.5 kW
Max. torque 375 Nm/1,800 rpm
Shift 2.9 l

HYDRAULIC SYSTEM
Main pump 2 Adjustable axial piston pumps
Maximum oil flow 2 x 126 l / min
Travel drive 2 Adjustable axial piston pumps
Slewing gear 1 Adjustable axial piston pump

RELIEF VALVE SETTINGS
Boom circuit 343 bar
Slewing circuit 253 bar
Drive circuit 348 bar
Pilot control circuit 40 bar

PERFORMANCE
Swing speed 12.5 rpm
Max. ground speeds 5.3 km/h
Max. traction force 124 kN
Climbing ability 35°
ISO bucket breakaway force 103 kN
ISO arm tear-out force 67 kN

SERVICE REFILL CAPACITIES
Fuel tank 210 l
Engine coolant 23.6 l
Engine oil 15 l
Travel drive (per side) 2.2 l
Hydraulic oil tank 110 l
