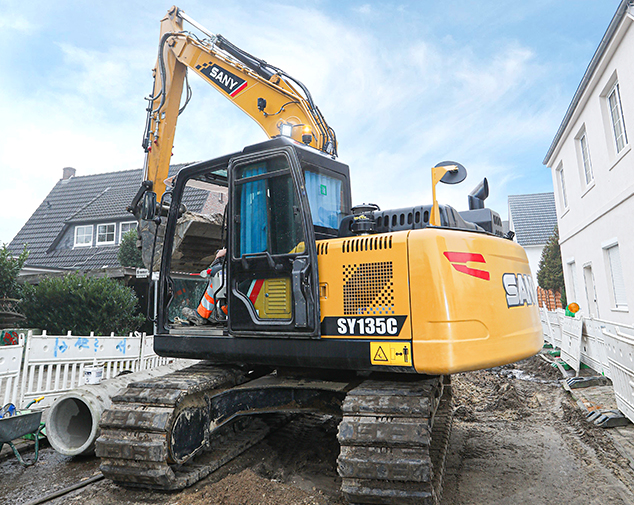

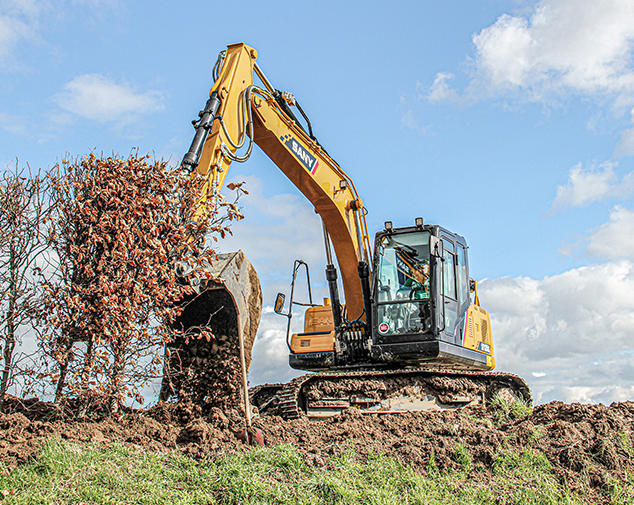

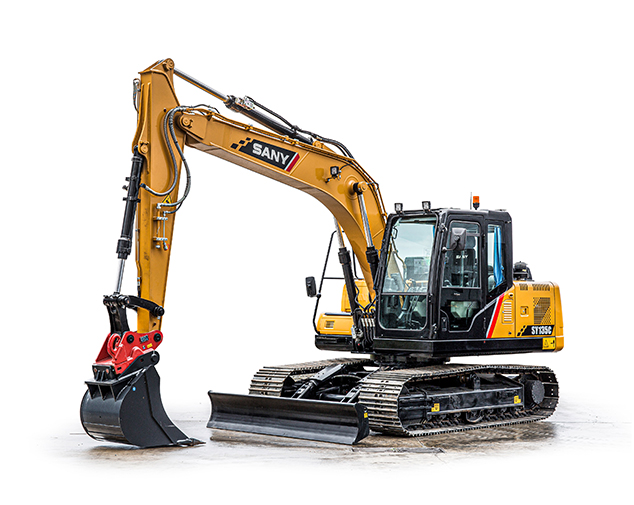

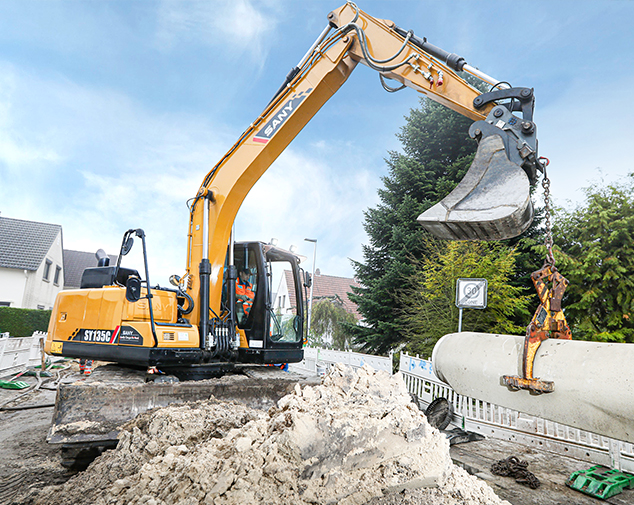

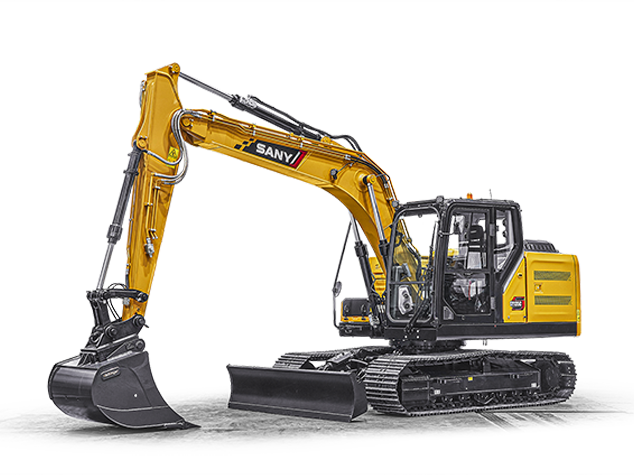

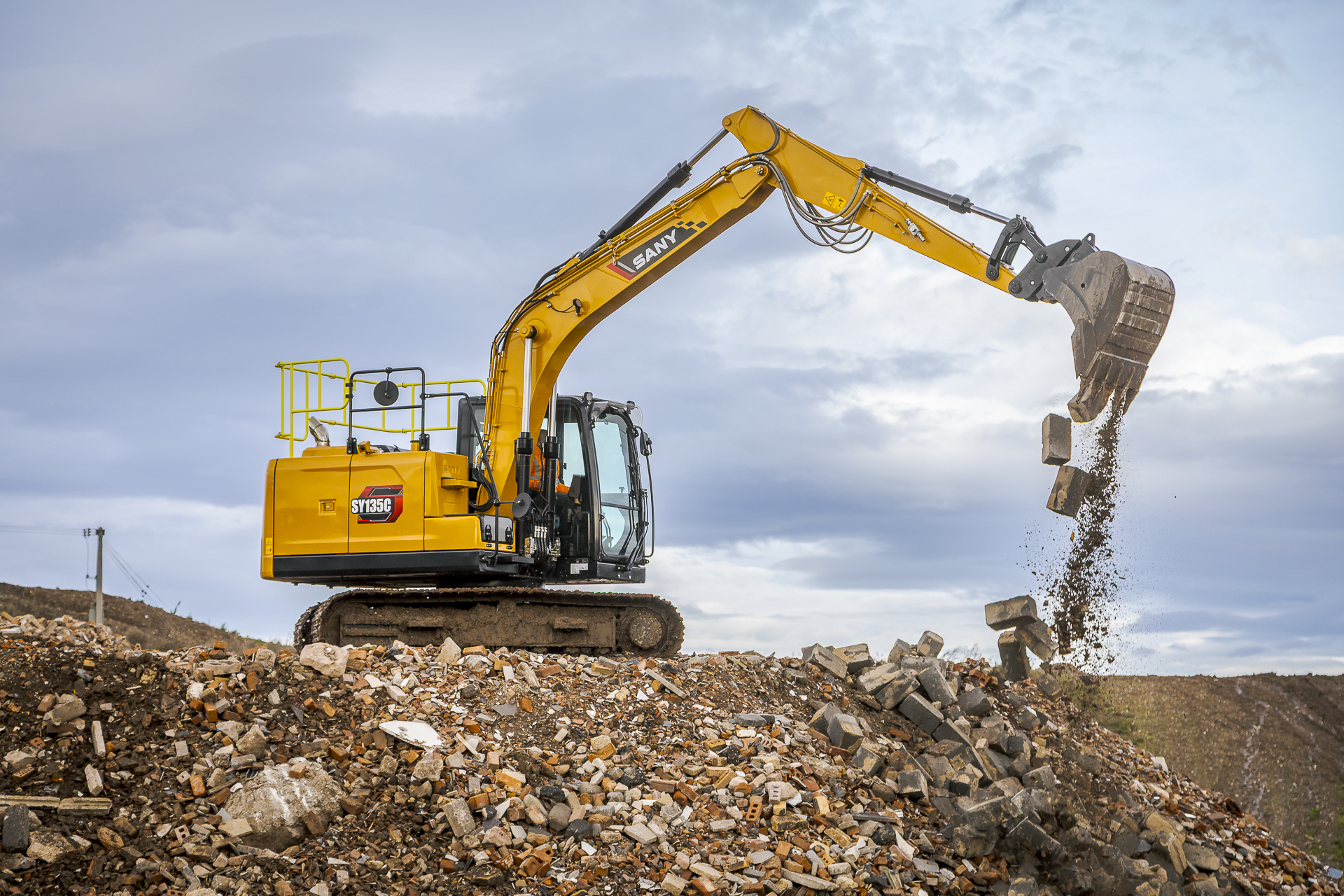

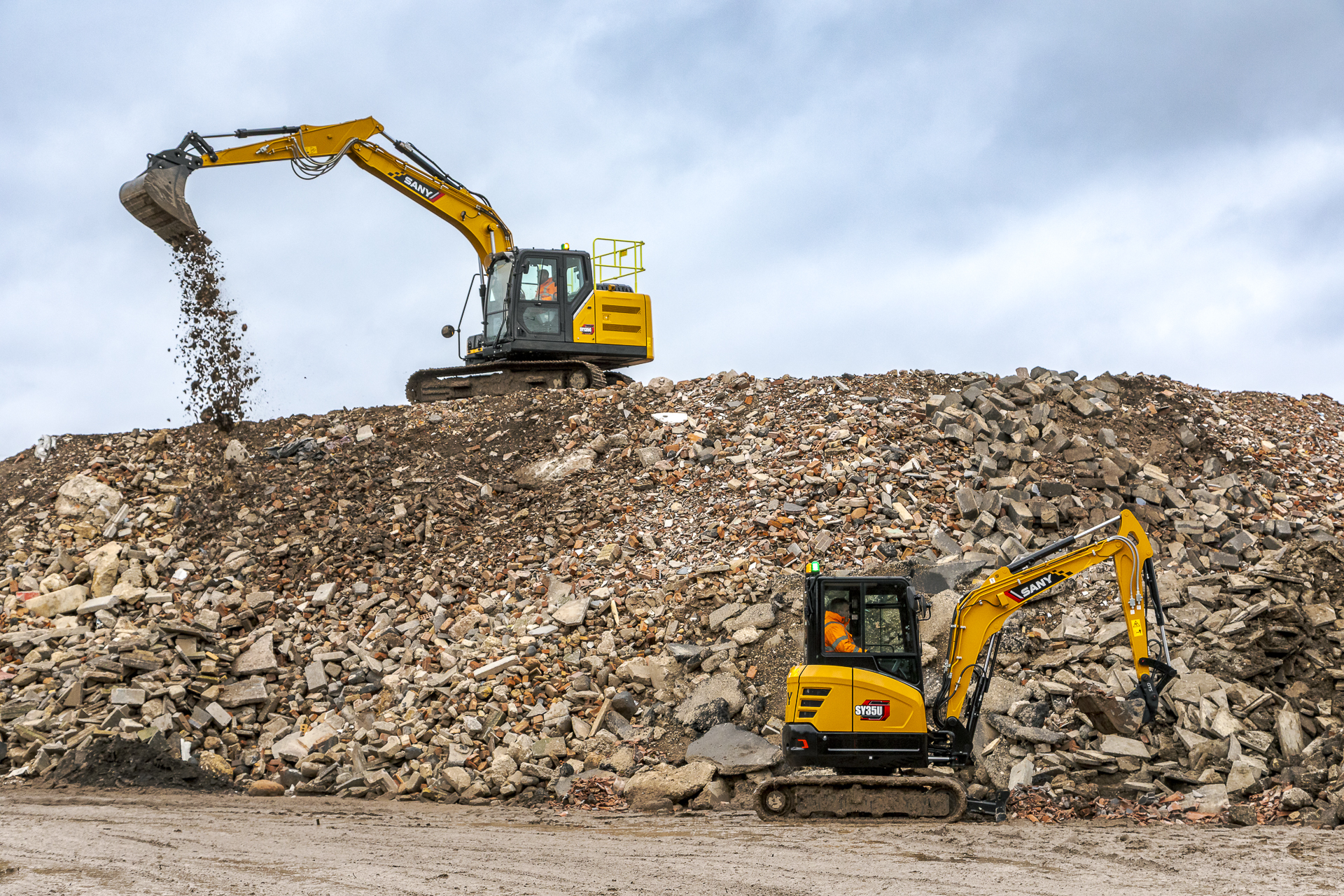

SY135C
A CHAMPION IN ITS CLASS

INDUSTRY LEADING 5-YEAR WARRANTY

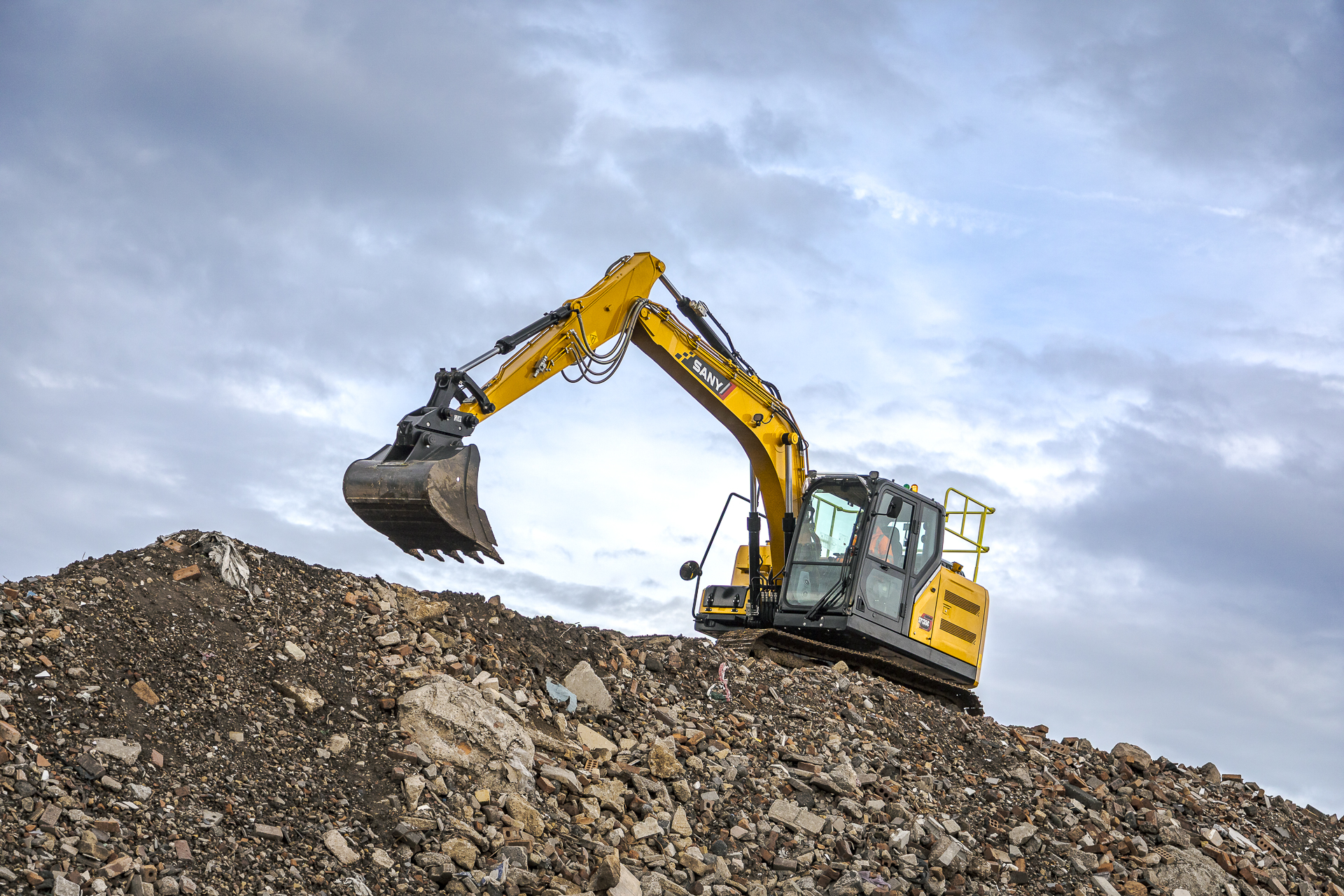

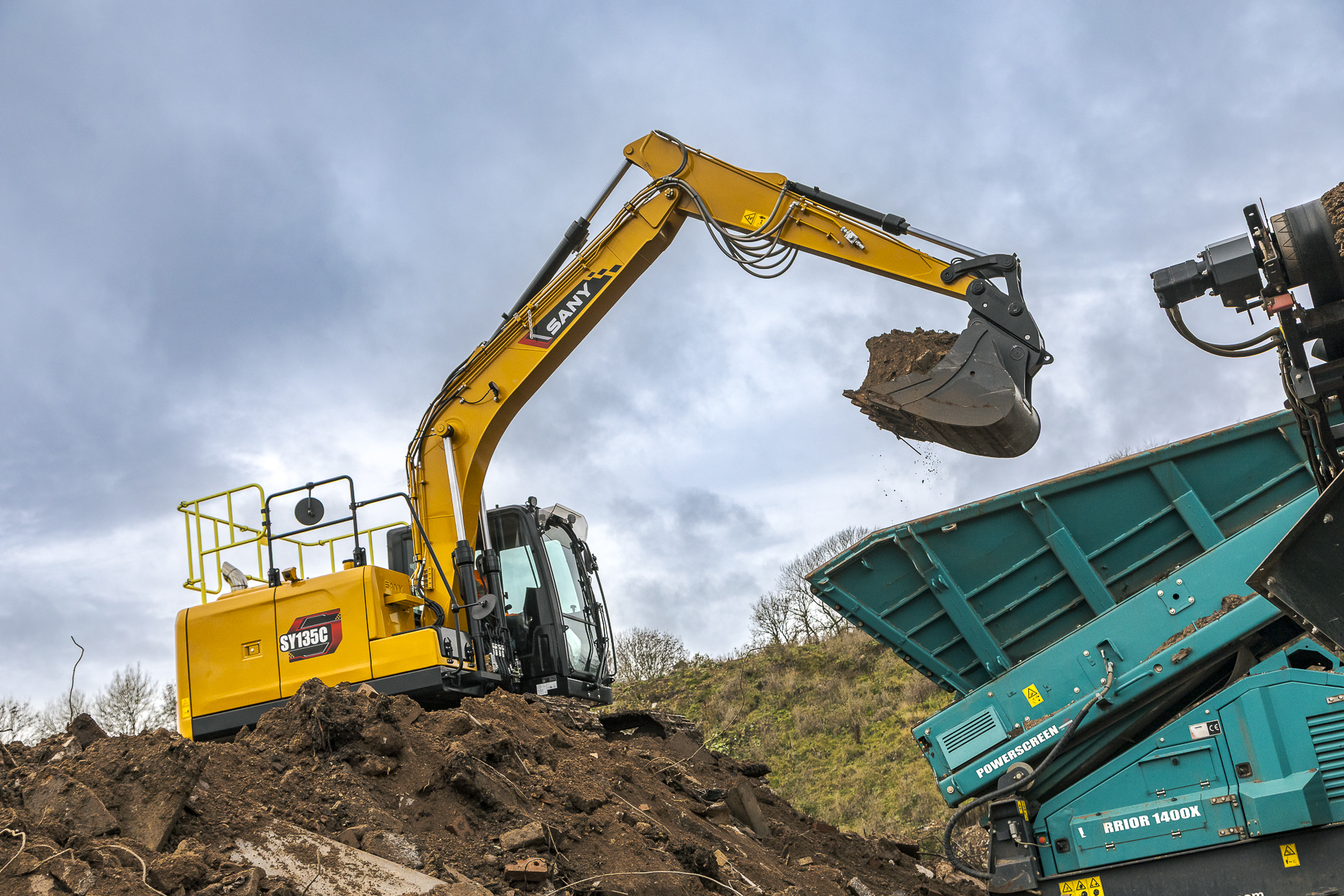

The SANY SY135C tackles work extremely efficiently as a compact excavator. High performance and impressive stability – the perfect combination to complete all tasks quickly and reliably on site. Its large working radius is also a plus point, with a maximum horizontal reach of 8,290 mm and maximum excavation depth of 5,500 mm.

- Versatile machine for construction, landscaping, horticulture and demolition
- Robust, wide heavy-duty undercarriage
- 5 year warranty for complete peace of mind

  • RATED POWER
    78.5 kW / 2,000 rpm
  • OPERATING WEIGHT
    14,666 kg
  • DIG DEPTH
    5,500 mm
Benefits & Features

PERFORMANCE

More work with less fuel! The SY135C’s powerful diesel engine and sophisticated hydraulics system ensures a strong performance with reduced fuel consumption that results in significant economic benefits.



+ Generous operating radius of maximum horizontal reach – 8,290mm and maximum excavation depth – 5,500mm

+ Stage V ISUZU engine and efficient, load sensing hydraulics to maximise on fuel economy

+ Hammer, bi-directional and rotate pipework with proportional controls enabling maximum versatility whatever the application

+ 100% steel bodywork for maximum protection and reduced cost of ownership



SAFETY

Safety features of  the SY135C guarantee maximum safety and minimal risk to operators and people around the machine.



+ ROPS/FOPS certified cab for safe operation

+ Rear view camera provides optimal visibility for increased on site safety

+ Battery disconnect switch

+ Travel alarm and rotating warning beacon to increase visibility, attract attention and ensure safety



OPERATOR COMFORT

The SY135C offers a premium class of operator comfort as standard.



+ Heated air suspension operator’s seat

+ Clear instrumentation and large high resolution colour display

+ Quiet, low vibration engine so noise levels are kept to a minimum

+ Adjustable ventilation, heating and automatic climate control system

+ Integrated cooling box and large amount of storage space

+ LED work lights for maximum visibility in low light conditions



SERVICE

+ Easy access to all maintenance points

+ Low maintenance requirements and longer service intervals

+ Ergonomic handrails allow safe access to the maintenance platform



SECURITY

+ Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category



WARRANTY

+ 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)

Specifications
DIMENSIONS
Overall length 7,700 mm
overall width 2,590 mm
Overall superstructure width 2,490 mm
Overall boom height 2,815 mm
Rear length 2,205 mm
Track width 1,990 mm
Landing gear length 3,665 mm
Landing gear width (dozer blade) 2,650 mm
Blade height 480 mm
Track shoe 700mm
Min. ground clearance 425 mm
Tail swing radius 2,205 mm
Distance between track wheel and guide wheel (center) 2,930 mm
Boom length 4,600 mm
Arm length 3000 mm
Bucket capacity 0.6 cubic meters

WEIGHT
Operating mass 14,666 kg

WORKING RANGE
Max. ground level range 8,290 mm
Max. excavation depth 5,500 mm
Max. vertical range 8,645 mm
Max. dumping height 6,175 mm
Minute. radius of gyration 2,500 mm
Max. excavation depth, vertical wall 4,850 mm

ENGINE
Model Isuzu 4JJ1X
Rated power 78.5 kW
Max. torque 375Nm/1600rpm
Shift 2.999 l

HYDRAULIC SYSTEM
Main pump Adjustable axial piston pump
Max. oil flow 2 x 126 l / min
Travel drive Adjustable axial piston pumps
Slewing gear Adjustable axial piston pumps

RELIEF VALVE SETTINGS
Boom circuit 343 bar
Slewing circuit 253 bar
Drive circuit 343 bar
Pilot control circuit 39 bar

PERFORMANCE
Swing speed 12 rpm
Max. ground speeds fast 5.3 km/h slow 3.5 km/h
Max. traction force 112 kN
Climbing ability 35°
ISO bucket breakaway force 103 kN
ISO arm tear-out force 67 kN

SERVICE REFILL CAPACITIES
Fuel tank 245 l
Engine coolant 23.6 l
Engine oil 15 l
Travel drive (per side) 5.5 l
Hydraulic oil tank 175 l
