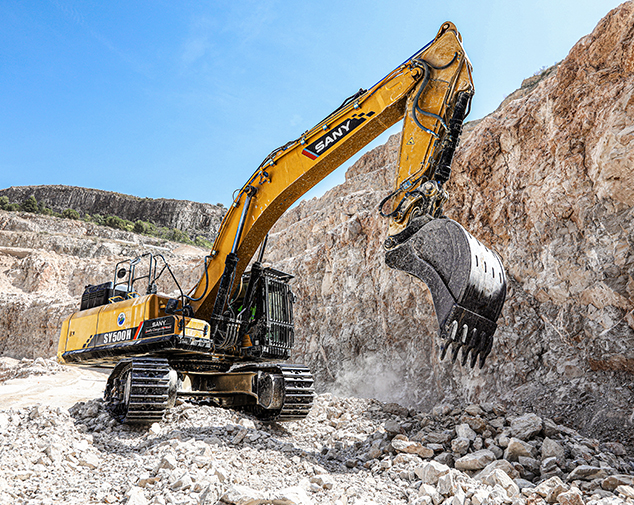

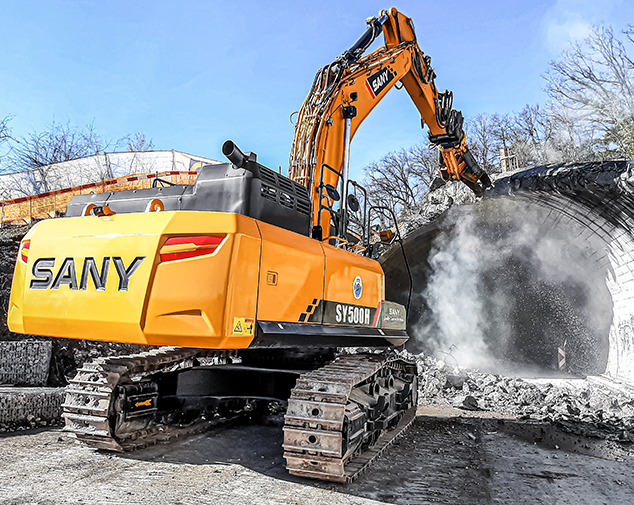

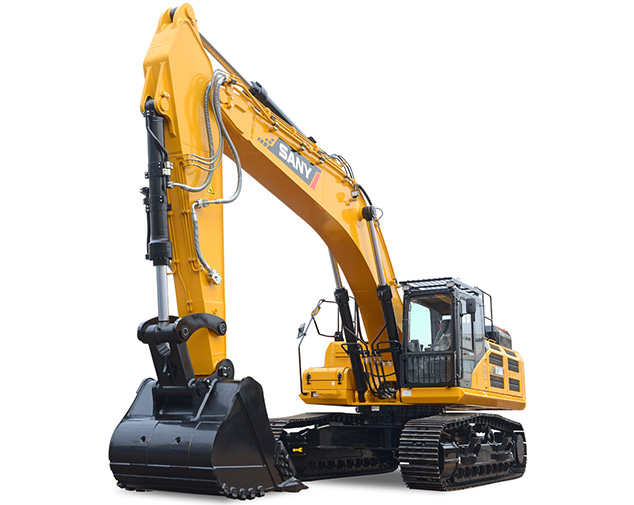

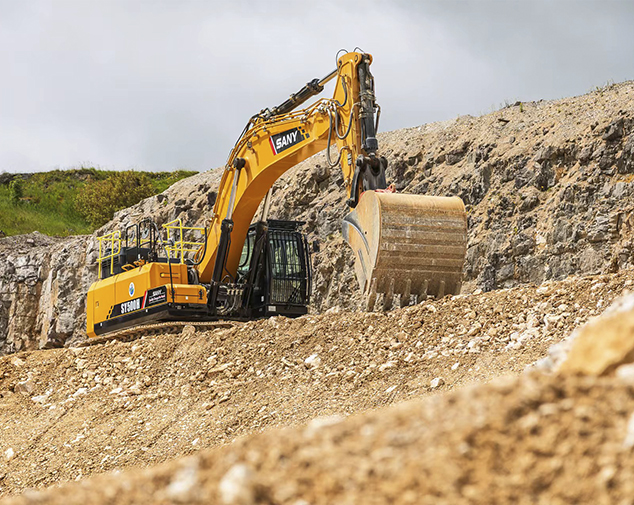

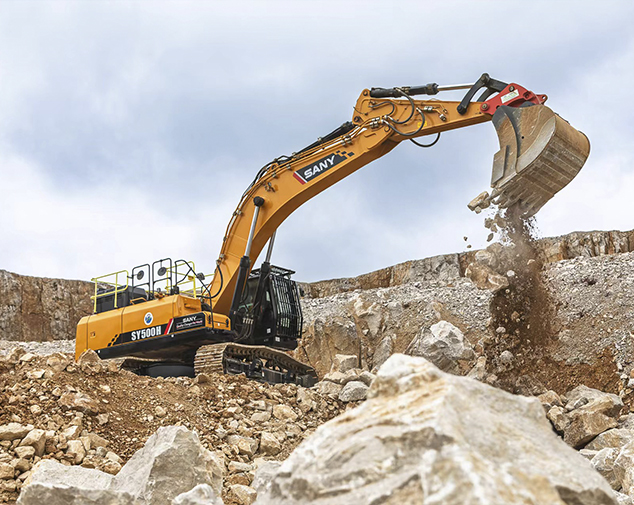

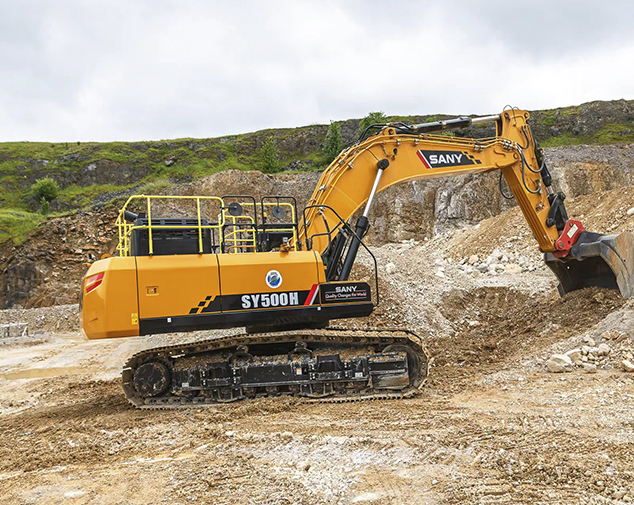

SY500H
HIGH PERFORMANCE INCLUDED

INDUSTRY LEADING 5-YEAR WARRANTY

The SANY SY500H has been designed for maximum productivity under continuous stress. The machine’s sturdy design and special chassis result in outstanding stability and it doesn't just impress with its performance. When it comes to equipment, this machine is in the top class. Everything you would expect from an excavator in the 50–tonne class is included on-board as standard.

- Powerful Stage V CUMMINS engine
- Comfortable ROPS/FOPS certified operators cab
- 5 year warranty for complete peace of mind

  • RATED POWER
    298 kW / 2,100 rpm
  • OPERATING WEIGHT
    53,300 kg
  • DIG DEPTH
    7,705mm
Benefits & Features

PERFORMANCE

With its even balance of power and precision, the SANY SY500H is just the right workhorse for cost-oriented use on the job site.



+ Heavy-duty undercarriage and solid boom provide an exemplary level of stability

+ Stage V CUMMINS engine and smart hydraulic control system to maximise on fuel economy

+ 100% steel bodywork for maximum protection and reduced cost of ownership

+ Hammer, bi-directional and rotate pipework with proportional controls enabling maximum versatility whatever the application



SAFETY

The SY500H includes a combination of safety features that work together to minimise risks to those people in and around the machine.



+ ROPS/FOPS certified cab for safe operation

+ Rear and side view camera for panoramic visibility

+ Travel alarm, green seat belt and rotating warning beacon to increase visibility, attract attention and ensure safety

+ LED work lights for maximum visibility in low light conditions



OPERATOR COMFORT

The ergonomically designed operators cab of the SY500H ensures both comfort, convenience and maximum productivity.



+ Ergonomic and fully adjustable, heated operator’s seat

+ Clear instrumentation and large high resolution colour display

+ Adjustable ventilation, heating and automatic climate control system

+ Integrated cooling box and large amount of storage space

+ Radio, speaker and USB port



SERVICE

+ Easy access to all maintenance points

+ Low maintenance requirements and longer service intervals

+ Ergonomic handrails and anti-slip tread surfaces allow safe access to the maintenance platform



SECURITY

+ Registered and protected with the CESAR Datatag Scheme (the premier initiative against equipment theft) and CESAR ECV for quick and easy verification of emissions category



WARRANTY

+ 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)







“The SY500H certainly matches the best I have ever driven in my lifelong career in the construction industry.” –

Alan Mayman, Halls Construction Services

Specifications
Overall length 12,100 mm
Overall width 3,600 mm
Overall width of superstructure  3,300 mm
Overall height above cab 3,480 mm
Overall height of boom 3,600 mm
Rear length 3,740 mm
Track width 2,740 mm
Undercarriage length 5,460 mm
Track link width 600 mm
Minimum ground clearance 560 mm
Tail swing radius 3,740 mm
Distance between crawler wheel and Guide wheel 4,410 mm

WEIGHT
Operating mass 53,300 kg

ENGINE
Manufacturer Cummins
Model Cummins QSX12
Rated power 298 kW
Max. torque 2,034 Nm
Displacement 11.8 l
Exhaust emissions Stage V
Batteries 24 v

HYDRAULIC SYSTEM
Max. oil flow 2 x 385 l/min

RELIEF VALVE SETTINGS
Boom circuit 34.3 MPa
Slewing circuit 280 MPa
Drive circuit 34.3 MPa
Pilot control circuit  39 MPa

SERVICE REFILL CAPACITIES
Fuel tank 680 l
Engine coolant 50 l
Engine oil 34 l
Travel Drive (per side)  15 l
Hydraulic oil tank  480 l

PERFORMANCE
Swing speed 7.9 rpm
Travel speed (Low/High) 5.1/3.1 km/h
Max. travel force 339 kN
Gradeability 70%*(35°)
Bucket digging force ISO 253 kN
Arm digging force ISO 227 kN
Boom length 6,500 mm
Arm length 2,500 mm
Bottom rollers 9
Top rollers 2
WORKING RANGE
Max. horizontal reach on the ground 12,035 mm
Max. excavation depth 7,705 mm
Max. vertical reach 10,930 mm
Max. dumping height 7,650 mm
Min. slewing radius 5,215 mm
Max. excavation depth, vertical wall 6,280 mm
Max. height at min. slewing radius 9,105 mm
