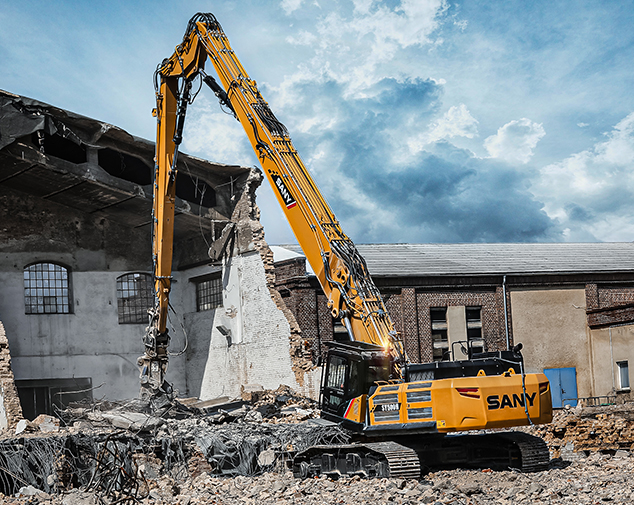

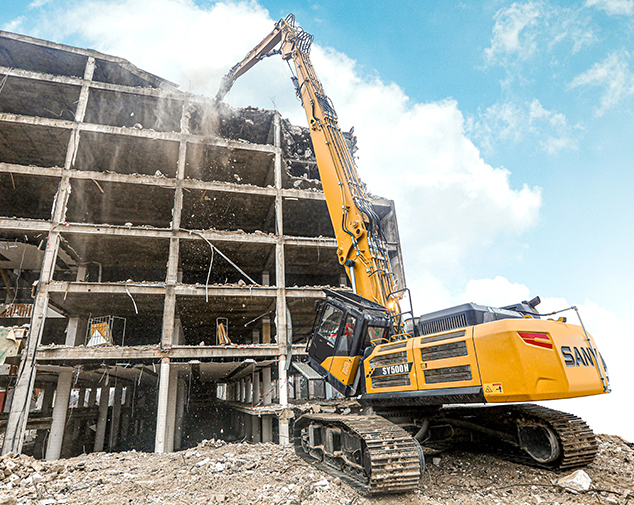

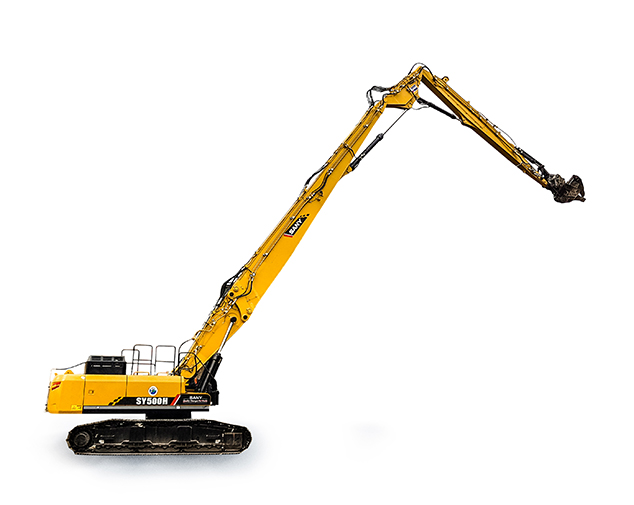

SY500HRD
A VERSATILE SPECIALIST
Designed for maximum productivity and endurance, the SANY SY500HRD impresses with its robust design and its versatility. With its extra-long boom, it takes the demolition tools to a whole new level. And, thanks to the hydraulically extendable chassis, it achieves outstanding stability, even when things get really tough.

- Powerful Stage V CUMMINS engine
- Telescopic chassis for optimum stability and high-reach 28m boom
- Tilting operator‘s cab for optimal visibility
- 5 year warranty for complete peace of mind
  • RATED POWER
    298 kW / 2,100 rpm
  • OPERATING WEIGHT
    64,000 kg
  • MAXIMUM PIN REACH
    28,150 mm
Specifications
DIMENSIONS
Overall length 200,000 mm
Overall width 3,400 mm
Overall superstructure width 3,292 mm
Overall height above cab 3,476 mm
Overall height of boom 3,800 mm
Rear length 4,126 mm
Track width 2,400/3,700 mm
Undercarriage length 5,930 mm
Undercarriage width (dozer blade) 3,200 mm
Track link width 800 mm
Minimum ground clearance 451 mm
Tail swing radius 4,126 mm
Distance between crawler wheel and guide wheel 5,000 mm

WEIGHT
Operating mass 64,000 kg

ENGINE
Manufacturer Cummins
Model Cummins QSX12
Rated power 298 kW
Max. torque 2,034 Nm
Displacement 11.8 l
Exhaust emissions Stage V
Batteries 24 v

HYDRAULIC SYSTEM
Max. 0il flow 2 x 360 l/min

RELIEF VALVE SETTING
Boom circuit 34.3 MPa
Slewing circuit 26.9 MPa
Drive circuit 34.3 MPa
Pilot control circuit 39 MPa

SERVICE REFILL CAPACITIES
Fuel tank 680 l
Engine coolant 49.19 l
Engine oil 34 l
Travel Drive (per side) 15 l
Hydraulic oil tank 500 l

PERFORMANCE
Swing speed 6 rpm
Travel speed (Low/High) 5.0/3.0 km/h
Max. travel force 320 kN
Gradeability 10°
Bucket digging force ISO 253 kN
Arm digging force ISO 170 kN
Boom length 15,200 mm
Arm length 8,500 mm
Bucket capacity 2.2 m³

WORKING RANGE
Max. horizontal reach on the ground 12,440 mm
Max. excavation depth 7,230 mm
Max. vertical reach 12,710 mm
Max. dumping height 7,590 mm
Min. slewing radius 4,670 mm
Max. excavation depth, vertical wall 6,315 mm
Max. height at min. slewing radius 10,330 mm
Benefits & Features

PERFORMANCE

With its superior reach and wide chassis, the SY500HRD is a versatile demolition machine capable of outstanding stability on the toughest of job sites.



+ Wide, hydraulic telescopic chassis with an extremely stable and robust frame.

+ Increased operating range with long 28m boom

+ Stage V CUMMINS engine and smart hydraulic control system to maximise on fuel economy

+ 100% steel bodywork for maximum protection and reduced cost of ownership



SAFETY

Safety is always the highest priority when it comes to demolition work which is why the operators cab on the SY500HRD is extremely robust in accordance with the EU directive.



+ Tilting operators cab with for optimal visibility

+ Rear and side view camera for optimal visibility

+ Roof panel and windscreen, which are made from safety glass, are located behind protective grilles

+ Automatic range limitation, ensures that both people and the machine are protected as much as possible

+ LED work lights for maximum visibility in low light conditions



OPERATOR COMFORT

With the SANY SY500HRD operators can achieve maximum productivity in a comfortable environment.



+ Ergonomic, fully adjustable, heated operator’s seat

+ Clear instrumentation and large high resolution colour display

+ Adjustable ventilation, heating and automatic climate control system

+ Integrated cooling box and large amount of storage space

+ Radio, speaker and USB port



SERVICE

+ Easy access to all maintenance points

+ Low maintenance requirements and longer service intervals

+ Ergonomic handrails for safe access to the maintenance platform



WARRANTY

+ 5-year/5000 hour warranty as standard for complete peace of mind (Terms and Conditions apply)
